What Is a 4-Way Pallet Shuttle System?
A 4-way pallet shuttle system is a high-density automated warehouses solution designed to move pallets in four directions, forward, backward, left, and right, within a racking structure. Unlike traditional shuttle systems that operate in a single fixed lane, a 4-way shuttle can travel flexibly across multiple lanes and levels, enabling true three-dimensional warehouse automation.
The shuttle retrieves, transports, and accurately positions pallets inside deep-lane racking systems. Vertical lifts or elevator conveyors connect storage levels, allowing the shuttle to operate seamlessly throughout the entire warehouse structure. The system consists of three core components:
- A dedicated racking structure with integrated rail systems
- Autonomous 4-Way shuttle robots equipped with sensors and lifting mechanisms
- Intelligent control software that orchestrates shuttle movements and manages inventory
This configuration enables warehouses to achieve up to 80% space utilization, compared to only 50-60% with traditional selective racking systems.
Read more: Pallet Shuttle Racking System for Automated Warehouses
Key Components of a Four-Way Shuttle System
A 4-way shuttle system is engineered for high-density pallet storage and fully automated material handling. To understand how it delivers speed, flexibility, and optimized warehouse space utilization, it’s essential to examine its core components.

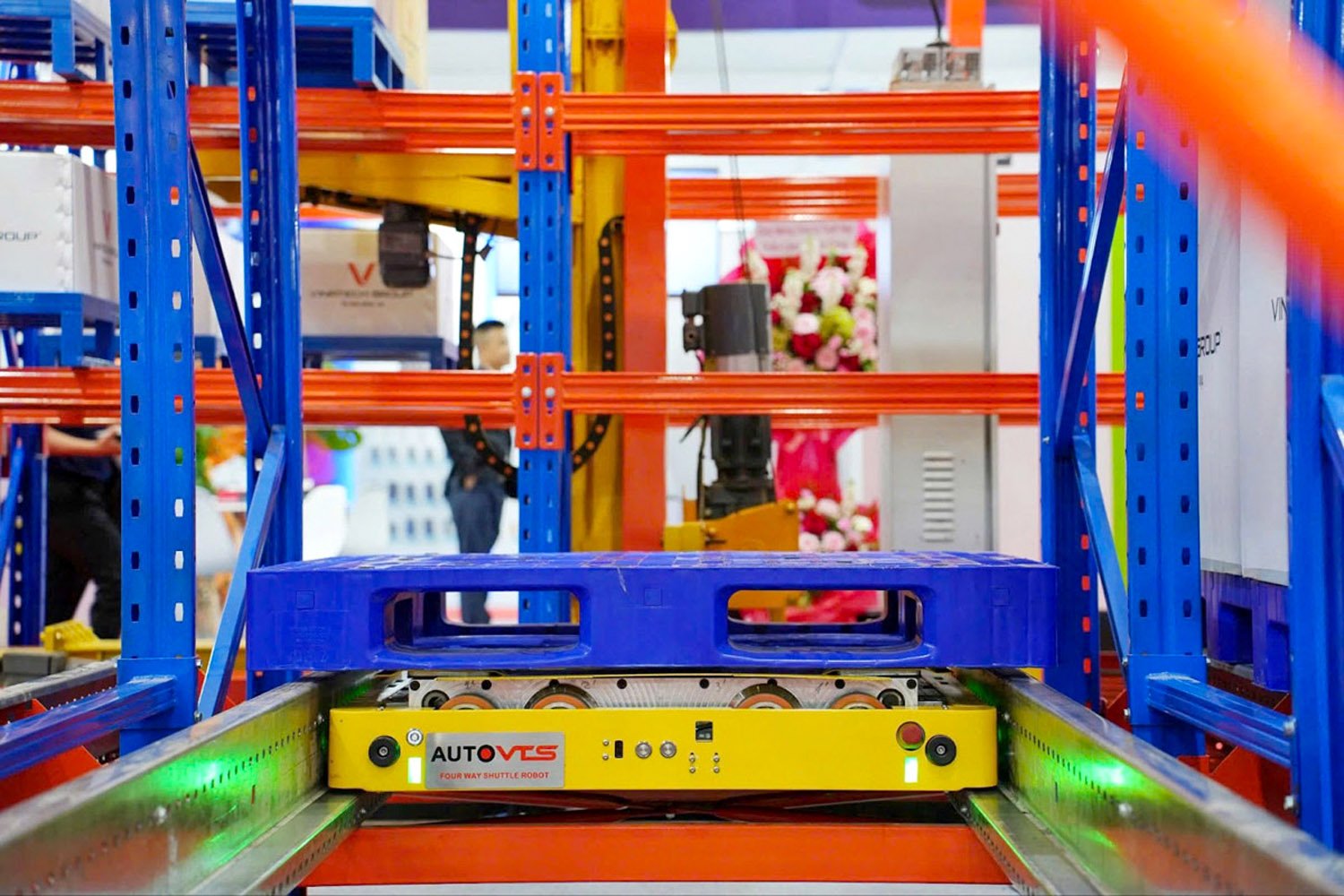

Robot 4-way shuttle
The 4-way shuttle robot is the central operating unit of the system. This battery-powered robotic platform moves omnidirectionally, forward, backward, and laterally, within the racking structure.
Equipped with precision sensors, onboard controllers, and advanced positioning technology, the shuttle ensures accurate pallet placement and retrieval in deep-lane storage environments.

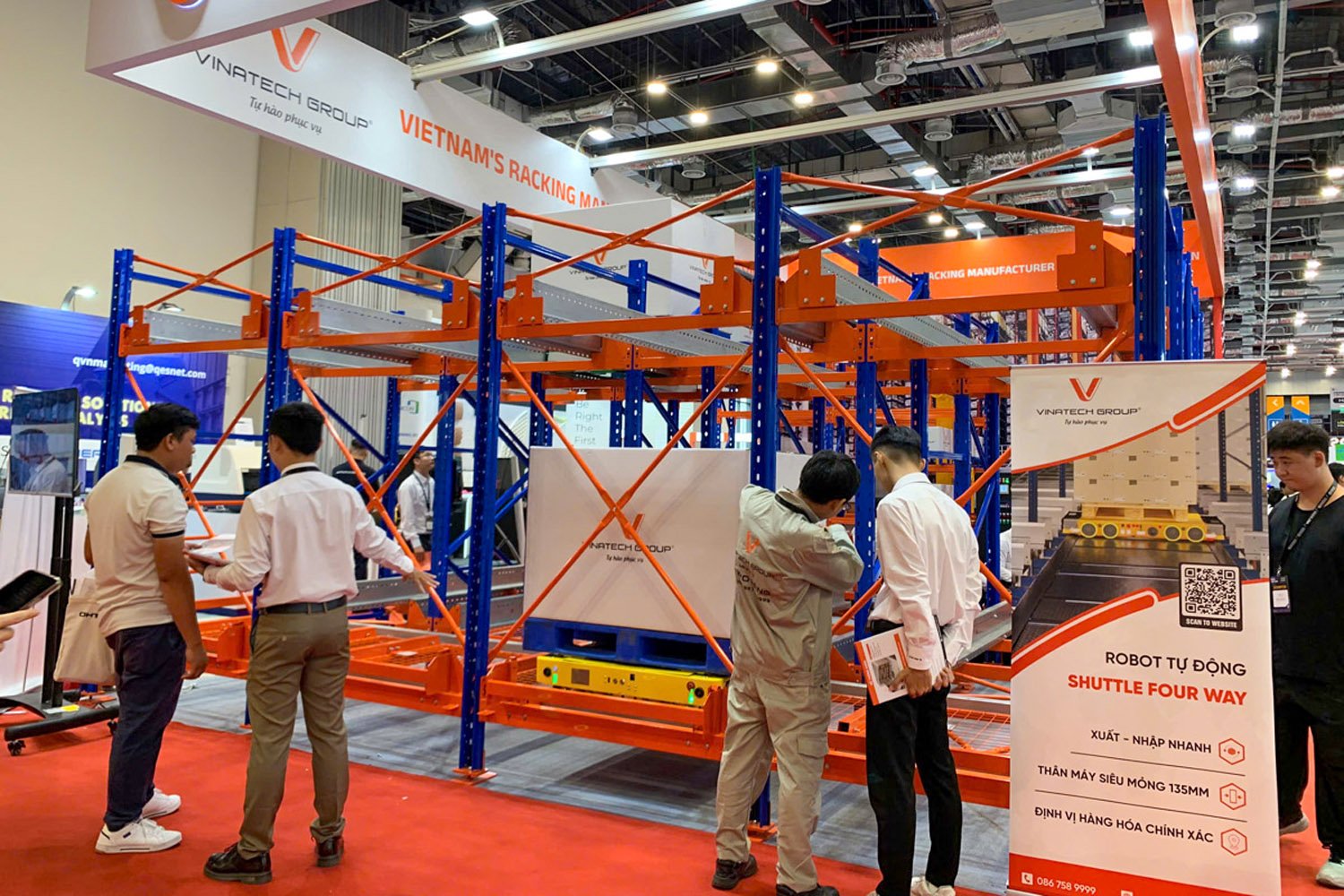

High-Density Racking Structure
The racking system is specifically engineered to support shuttle travel across multiple lanes and levels. Unlike conventional selective racking, this structure minimizes forklift aisles and maximizes cubic storage capacity. Integrated rail systems allow smooth, stable, and precise shuttle movement throughout the storage channels.
Vertical Lift/Elevator
The vertical lift connects different storage levels, enabling the shuttle to change elevation and operate throughout the full height of the warehouse. This component is critical for maximizing vertical space, especially in high-bay or automated distribution centers.
Conveyor System
Inbound and outbound conveyor systems transfer pallets between staging areas and the shuttle network. These conveyors ensure seamless integration with production lines, sorting systems, and shipping docks, maintaining a continuous and efficient material flow.
Battery Charging System
The shuttle operates using industrial-grade lithium batteries supported by automatic charging stations or quick battery exchange mechanisms. This ensures continuous 24/7 operation with minimal downtime, making the system suitable for high-throughput warehouse environments.
Read more: ASRS System – Automated Storage and Retrieval Solutions
How does a 4-way shuttle work?
The 4-Way shuttle operates through a fully automated workflow consisting of four coordinated stages: pallet intake, automated transportation, precise placement, and pallet retrieval.
Multi-Directional Movement
Pallets are delivered by forklifts to designated entry points at each rack level. Powered by a 650W motor, the 4-Way shuttle reaches speeds of up to 1.2 m/s when unloaded and 0.8 m/s when carrying a load, ensuring fast and stable performance in high-throughput warehouse environments.
Unlike 2-way shuttle systems confined to a single lane, the 4-Way shuttle can move horizontally, vertically, change lanes, and switch rack levels via transfer cars or lifting mechanisms. This capability enables seamless connectivity across aisles and rack levels, optimizing overall warehouse material flow.

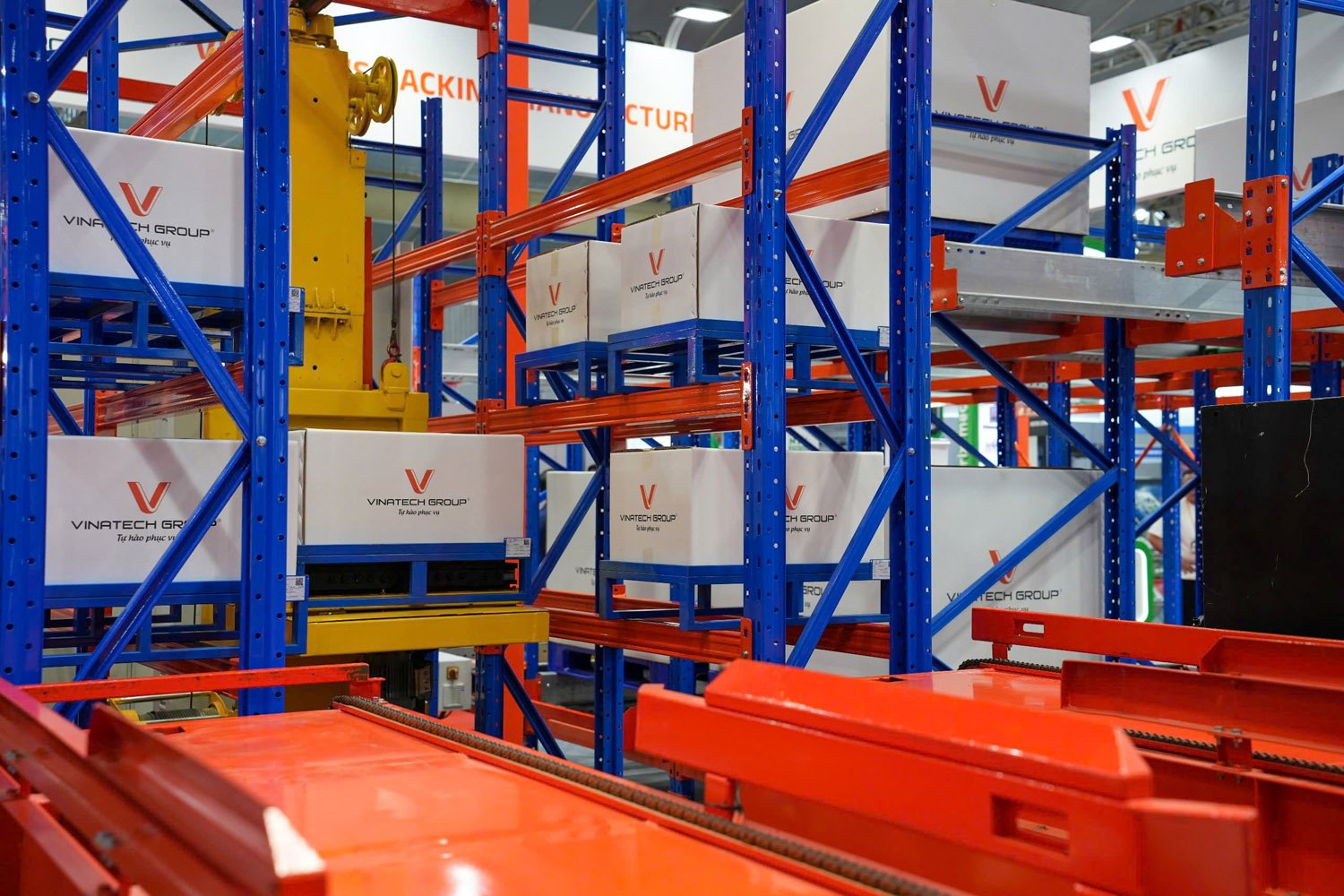

Precise Positioning & High-Density Storage
As the shuttle approaches the assigned storage location, it automatically decelerates and uses infrared sensors to verify available space. The integrated lifting mechanism then places the pallet onto the support rails with positioning accuracy of ±5 mm, ensuring load safety and long-term system stability.
The solution supports storage channels with depths of up to 131.2 ft, accommodating 20-30 pallets per lane, depending on rack height and warehouse operating requirements.

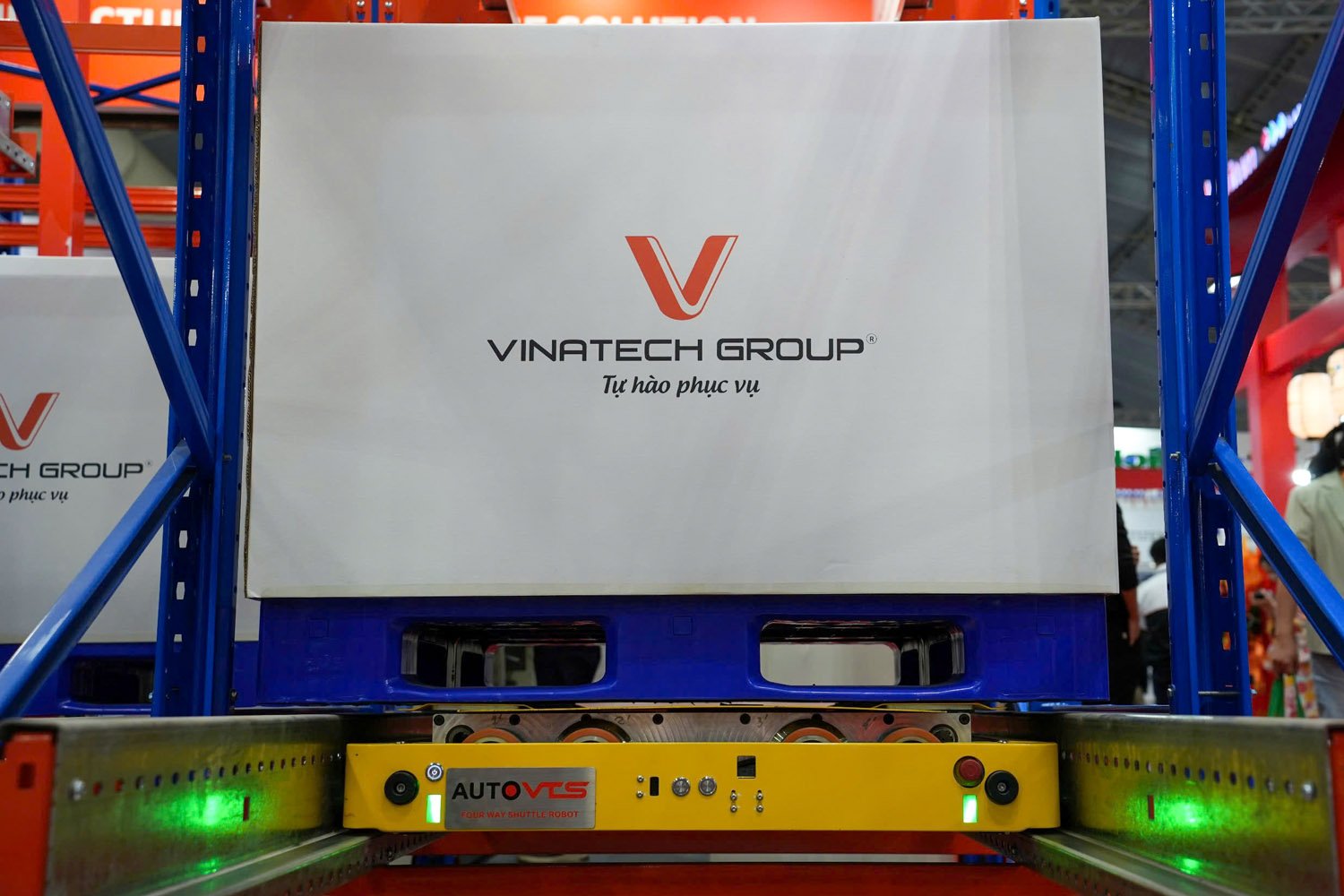

Smart and Continuous Inbound-Outbound Operations
During inbound and outbound processes, the WMS automatically issues commands to the 4-Way shuttle to retrieve specific pallets based on FIFO, LIFO, or order-priority logic. All operations are synchronized end-to-end, minimizing manual intervention while ensuring high accuracy in material handling.
After completing up to 8 hours of continuous operation (or 6 hours in cold storage environments), the shuttle automatically returns to the charging station based on intelligent energy-management algorithms.
Advantages of Four Way Shuttle Systems
From flexible movement and precise positioning to advanced automation in inbound and outbound operations, the 4-Way shuttle racking solution delivers significant advantages in space optimization, operational efficiency, and cost reduction.

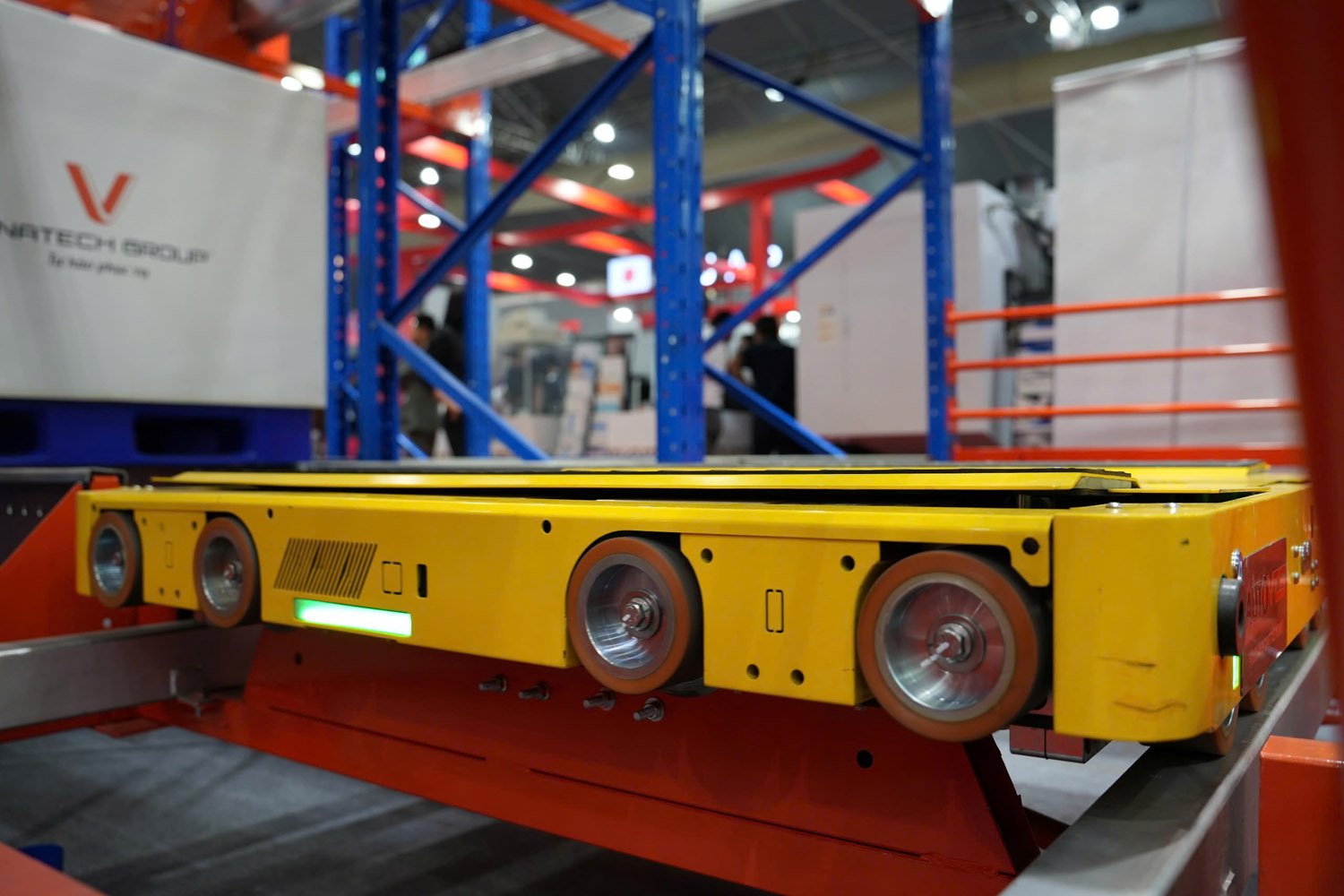

Space Optimization: High Storage Density
Thanks to deep-lane storage design and multi-directional movement, the 4-Way shuttle system significantly reduces aisle requirements compared to conventional racking. Warehouse space is efficiently utilized both horizontally and vertically, making it ideal for facilities with limited footprints, high land costs, or large pallet volumes.
Additionally, the system supports storage lanes up to 40 meters deep, with 20-30 pallet positions per lane, maximizing cubic space utilization and substantially increasing total warehouse capacity.

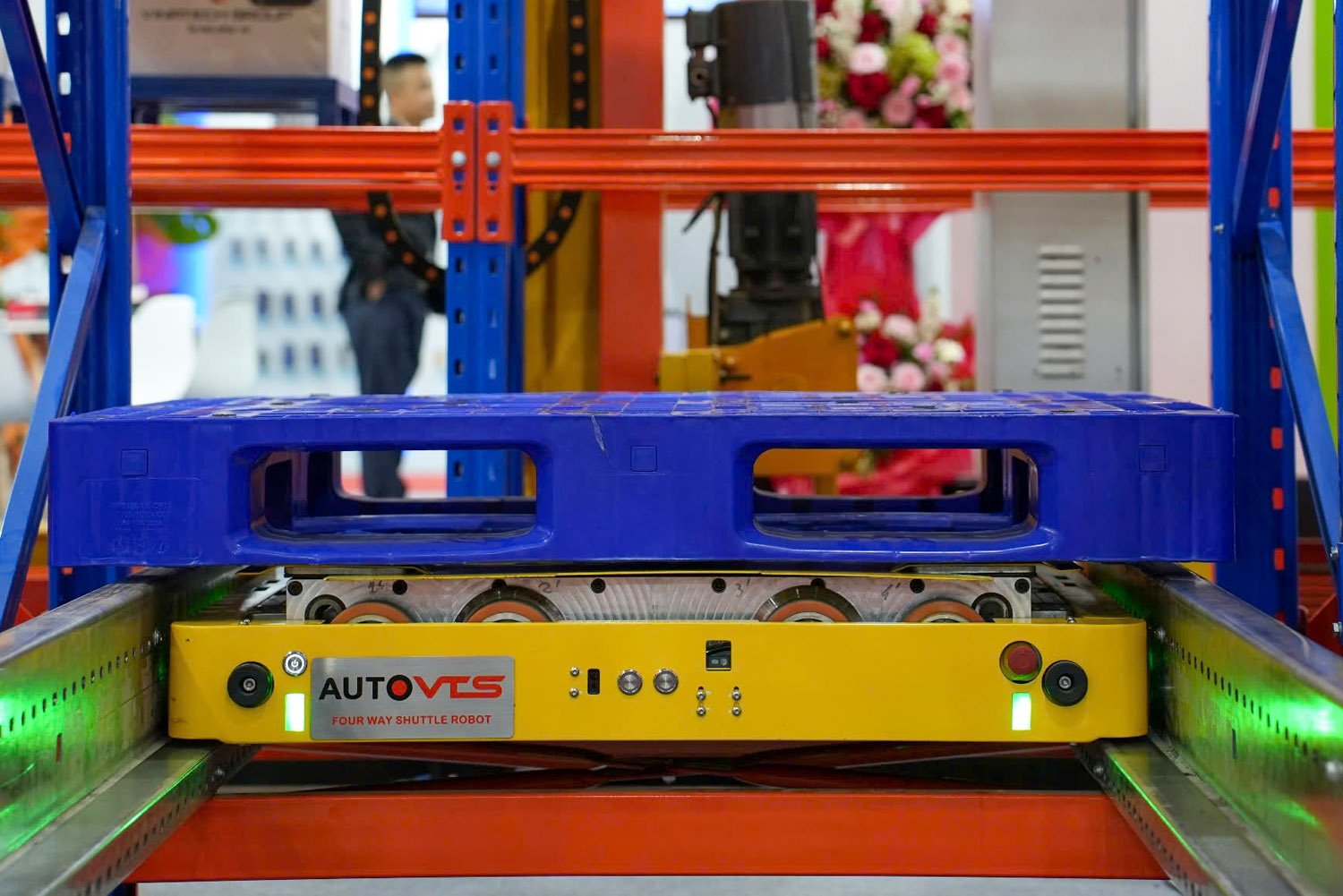

Operational Speed: Increased Throughput
The 4-Way shuttle operates continuously, handling 30-40 pallet cycles per hour, compared to 12-15 cycles per hour with manual forklift operations. For high-speed environments such as e-commerce fulfillment and cold-chain distribution, this translates into:
- Reduced order cycle times
- The ability to process up to twice the order volume using existing infrastructure
- Improved service levels with on-time delivery rates up to 99.5%

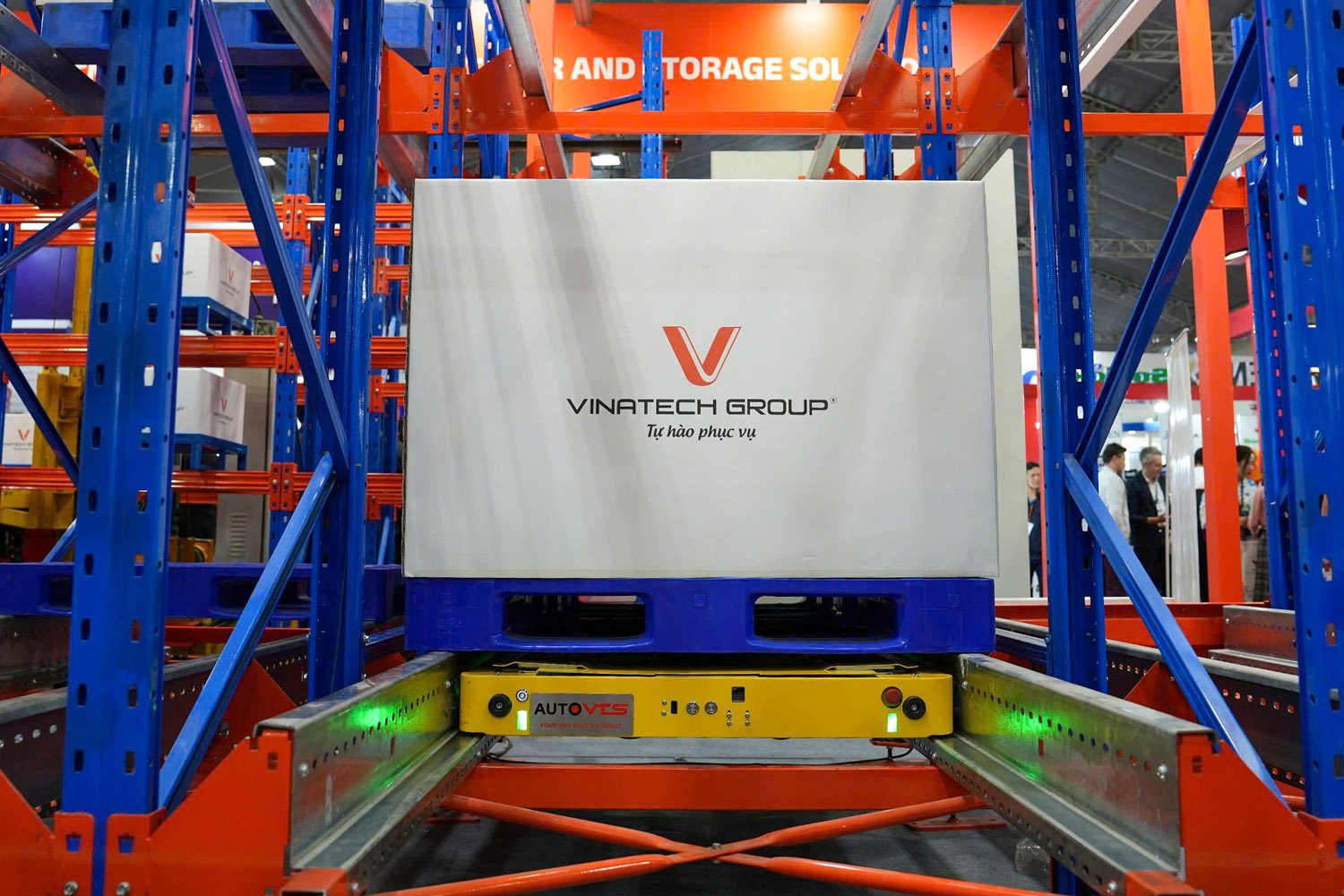

Inventory Accuracy and Real-Time Control
Through direct integration with the WMS, the 4-Way shuttle solution enables real-time inventory visibility, eliminating storage location errors, misplaced pallets, and stock discrepancies.
As a result, warehouses can significantly reduce stocktaking frequency from monthly to quarterly, saving time and auditing resources. Improved FIFO/FEFO rotation lowers the risk of obsolete inventory by 20-30%, while minimizing write-offs and annual loss costs, particularly critical for food and pharmaceutical industries.
Compare 4-way shuttle and 2-way shuttle
Understanding the differences between a 4-way shuttle and a 2-way shuttle system is essential when selecting the right high-density storage solution for your warehouse operation.
| Feature | 2-Way Pallet Shuttle (Semi-automated) | 4-Way Pallet Shuttle |
| Automatic movement in storage channel | Yes | Yes |
| Automatic movement in aisle | No | Yes |
| Automatic vertical movement | No (requires forklift) | Yes (via pallet elevators) |
| Automatic aisle change | No | Yes |
| Multiple shuttles per aisle | – | Yes (reassignable as needed) |
| Multiple shuttles per level | – | Yes (reassignable as needed) |
| Automation level | Partial | Full |
In summary, while a 2-way shuttle system improves storage density within individual lanes, a 4-way shuttle system delivers full automation, cross-aisle flexibility, and greater scalability, making it the more advanced solution for high-throughput, future-ready warehouses.
Vinatech is a distributor and installer of 4-way shuttle systems
As a comprehensive solution partner, Vinatech supports customers throughout every stage of the project, from warehouse layout design and technical consulting to equipment supply, on-site installation, system commissioning, and after-sales technical support.
Our 4-way shuttle systems are designed for seamless integration with Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS), enabling real-time inventory tracking, automated pallet movement, and optimized material flow. Whether upgrading an existing facility or developing a new high-bay warehouse, Vinatech US provides the solutions and expertise required to build a future-ready storage system.
Vinatech USA Automated Warehouses & Pallet Racking Solutions
- Website: vinatech.us
- Phone number: (346) 299-8904
- Email: info@vinatech.us
- Address: 5718 Westheimer Rd, Houston, TX 77057
A 4-Way Shuttle System represents one of the most advanced warehouse automation solutions available today, combining exceptional storage density with intelligent pallet handling. Capable of moving pallets in four directions across multiple levels, the system maximises space utilisation, increases throughput, and reduces reliance on manual labour. With customised design, engineering expertise, and automation support, Vinatech Australia helps businesses implement 4-way shuttle solutions tailored to the demands of modern warehousing.
