Pallet Racking Systems – Industrial Warehouse Racking USA
Pallet racking helps warehouses increase storage capacity, improve inventory access, and operate more efficiently. This guide covers key racking types, benefits, upgrade signs, and how Vinatech United States supports scalable warehouse storage solutions.
What is Pallet Racking?

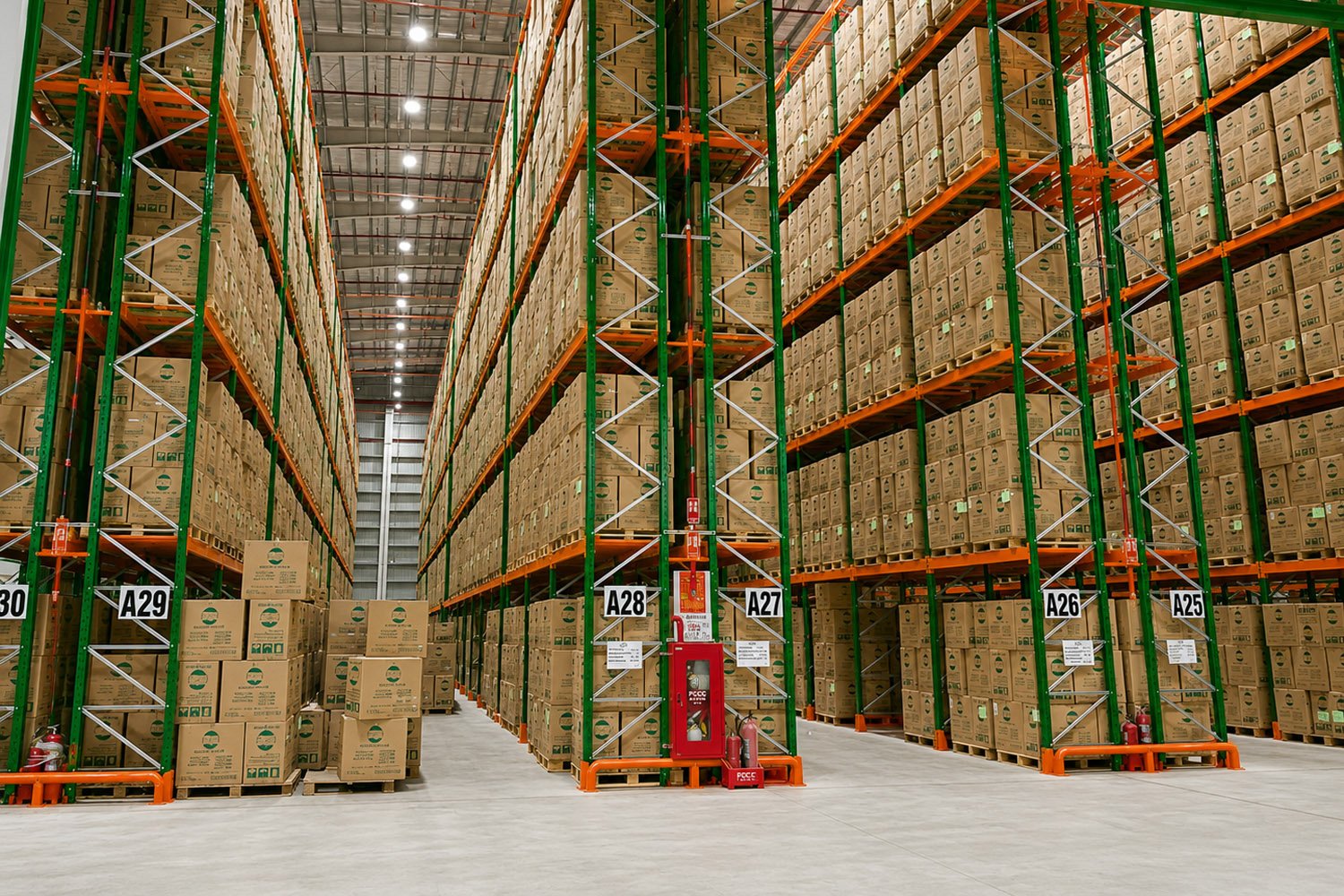

Pallet Racking is an industrial warehouse racking system designed to store palletized goods in horizontal rows and multiple vertical levels. This system helps warehouses maximize vertical space, increase storage density, improve picking speed, and enhance inventory control.
A typical Pallet Racking system includes upright frames, horizontal beams, wire decking, pallet supports, floor anchors, and safety accessories. The right configuration depends on pallet size, load capacity, forklift type, inventory turnover, warehouse height, and daily operating workflow.
Types of Warehouse Pallet Racking Systems
Each type of warehouse racking system serves a different storage purpose. Vinatech U.S provides a wide range of Pallet Racking solutions, including Pallet Racking, Double Deep Racking, Drive-in Racking, Pallet Flow Racking, Warehouse Mezzanine Racking, and VNA Racking.

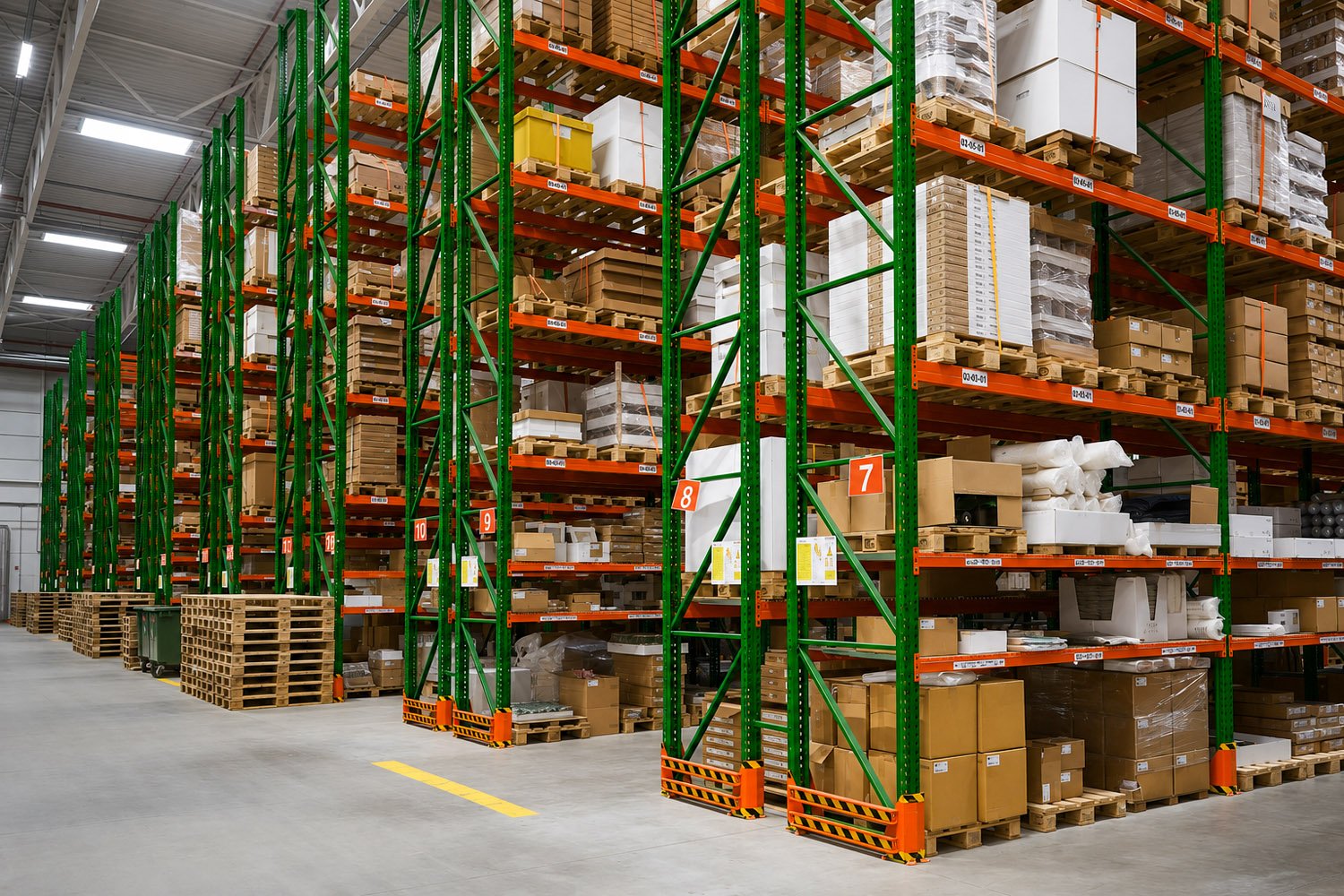

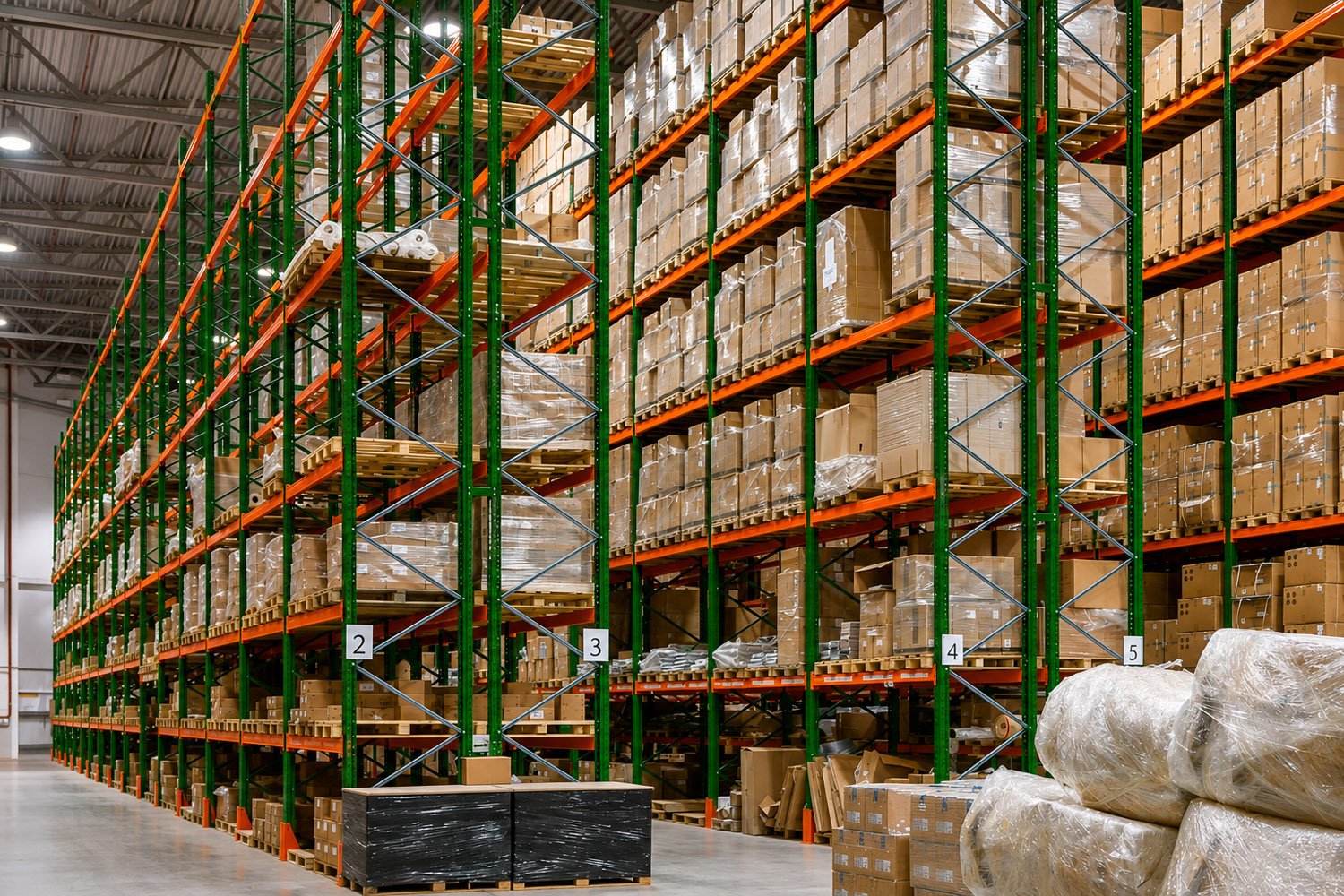

Selective Pallet Racking System
A standard Pallet Racking system, often known as Selective Pallet Racking, allows direct access to each pallet position. It is suitable for warehouses with a large number of SKUs and high inventory turnover. Selective Pallet Racking is highly flexible, easy to expand, and compatible with most forklift types.
Rack specifications:
- Load capacity: 1,100-6,600 lbs per level
- Beam length/depth: 45.3-157.5 in / 47.2-177.2 in
- Equivalent dimensions: 3.8-13.1 ft / 3.9-14.8 ft
- Selectivity: 100% of SKUs
- Picking method: FIFO/LIFO
Selective Pallet Racking is an efficient choice for businesses with diverse product categories that need fast pallet access rather than maximum storage density.

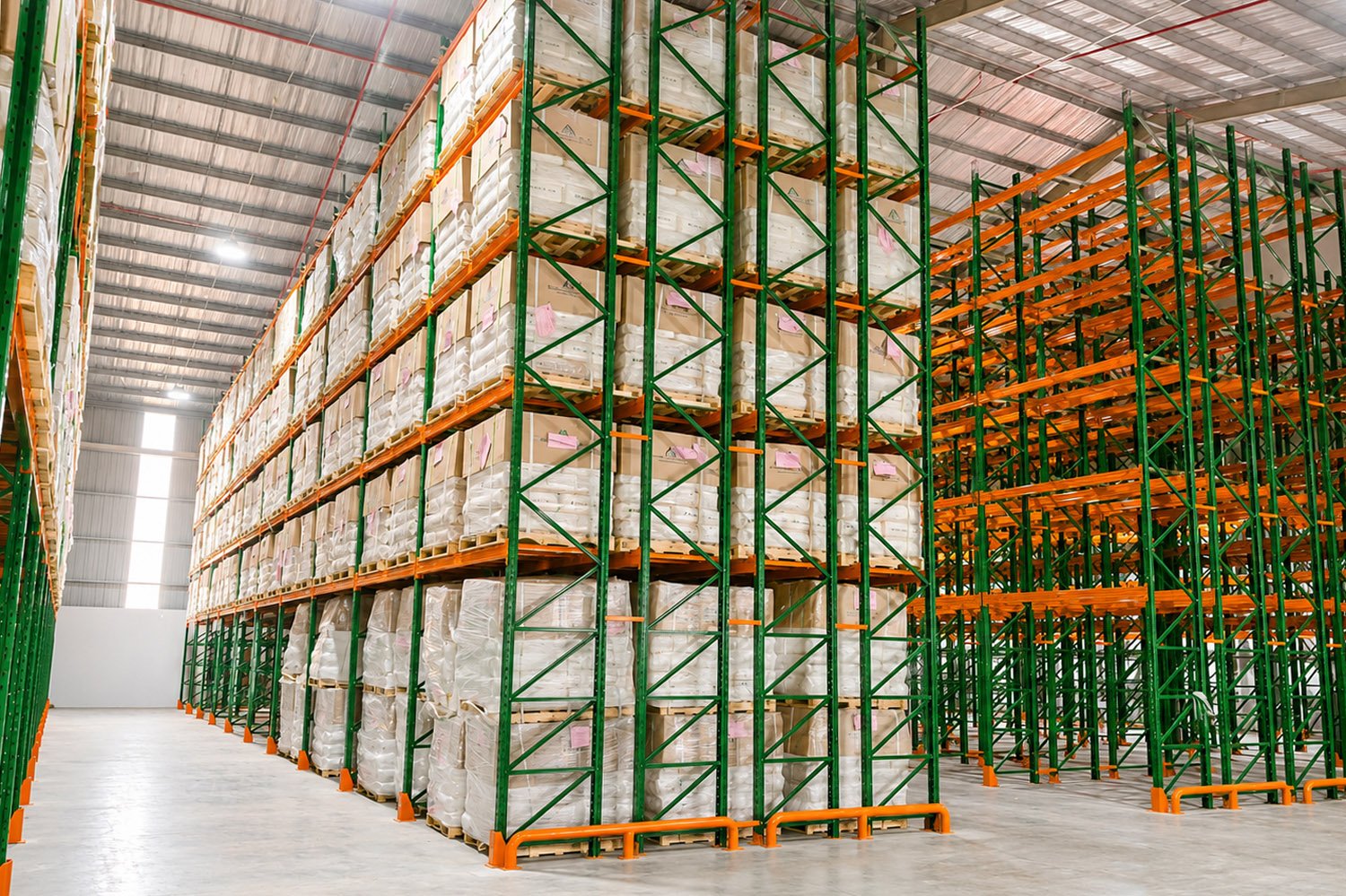

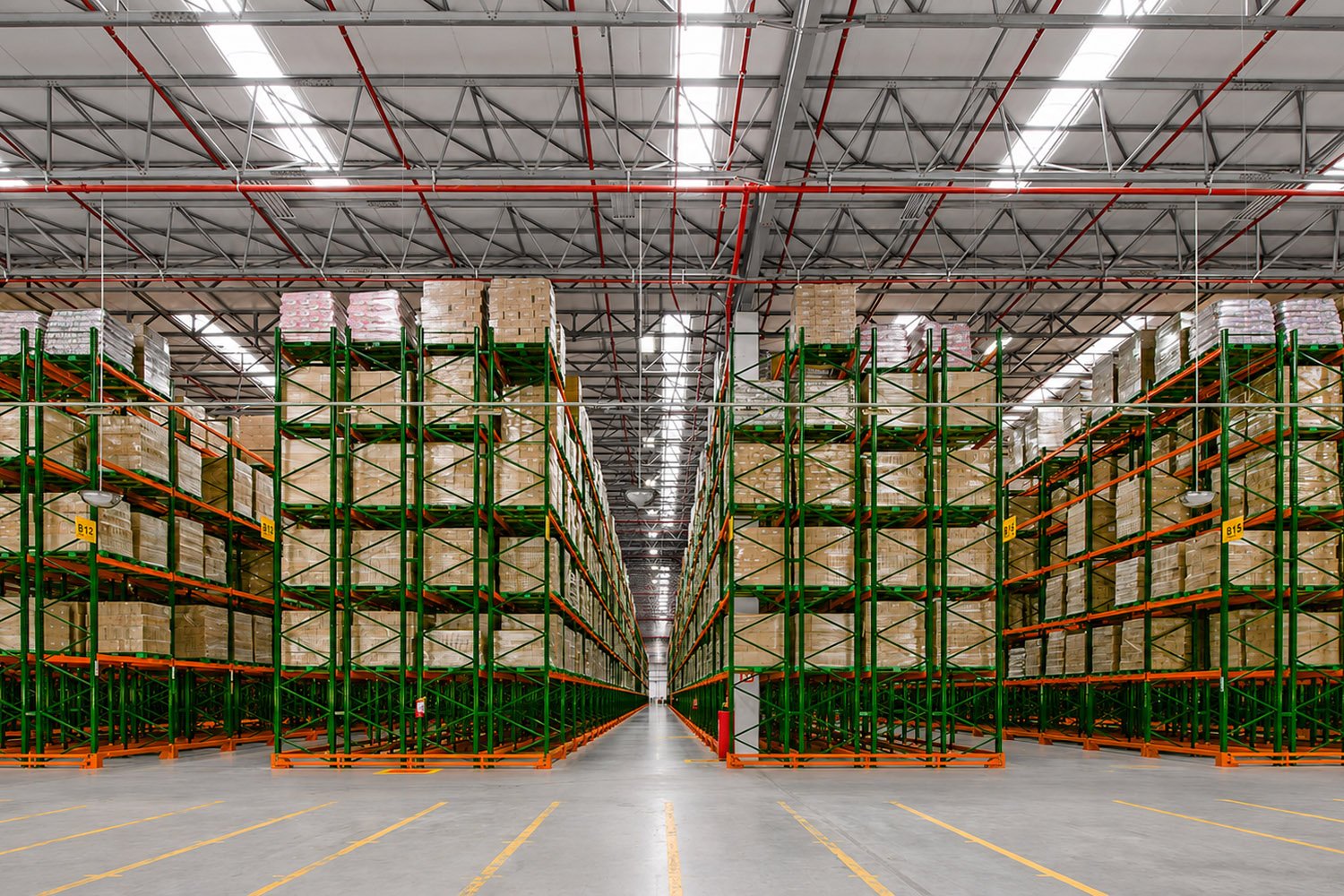

Double Deep Racking
Double Deep Racking is a pallet racking system that stores pallets two positions deep instead of one. By placing rack rows back-to-back, it can eliminate up to half of the aisles required in a standard layout. This design can increase storage capacity by 30% to 60%.
Rack specifications:
- Load capacity: up to 6,600 lbs per level
- Beam length: 45.3-157.5 in
- Equivalent beam length: 3.8-13.1 ft
- Depth: 47.2-177.2 in
- Equivalent depth: 3.9-14.8 ft
- Product accessibility: 100%
- Picking method: LIFO
Double Deep Racking is suitable for warehouses with a moderate number of SKUs and multiple pallets per SKU.

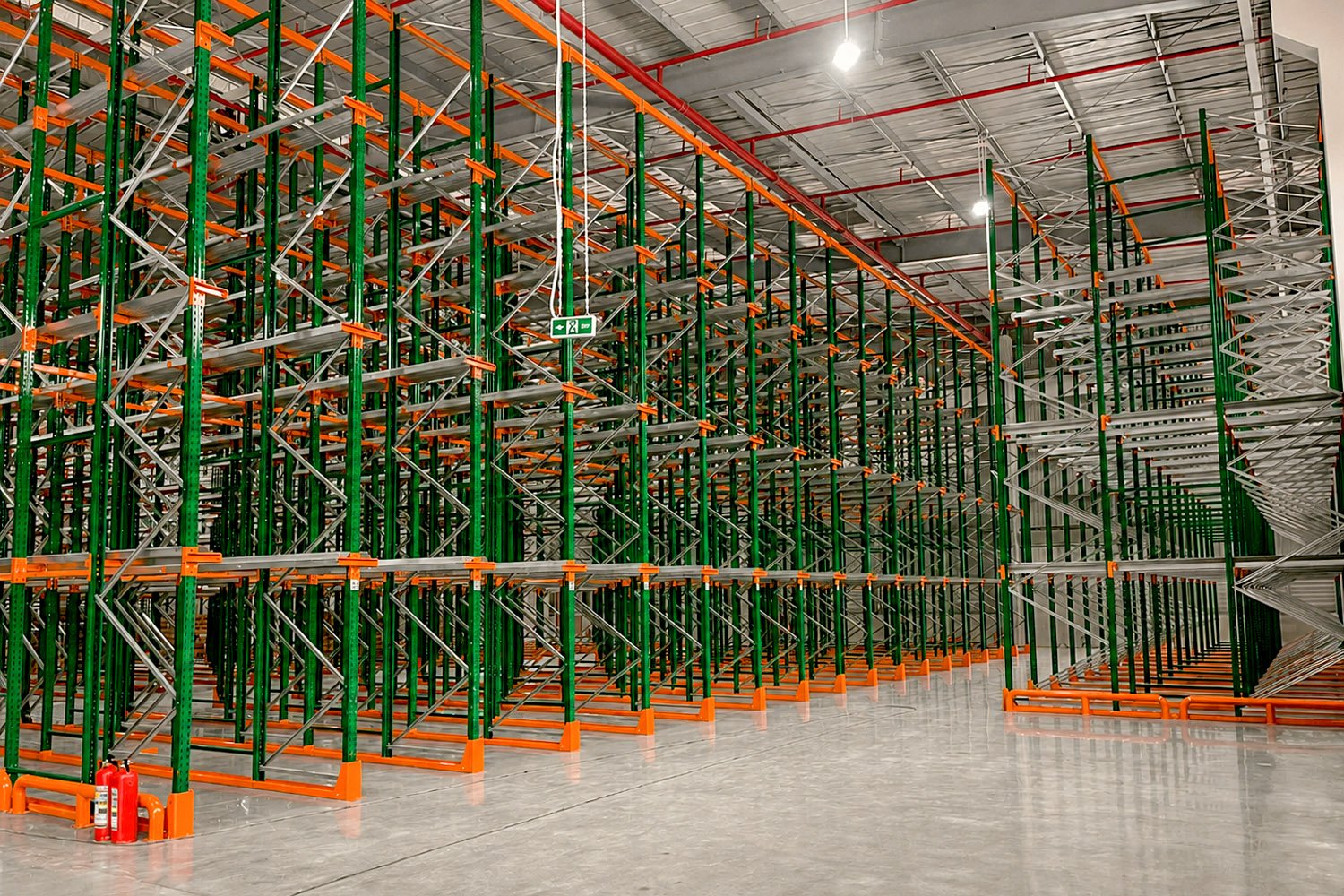

Drive-in Racking
Drive-in Racking is a high-density storage system that allows forklifts to enter the rack structure and place pallets on continuous support rails. This design can significantly increase warehouse storage capacity. It is suitable for storing large quantities of similar products.
Rack specifications:
- Load capacity: ≥ 2,200 lbs per pallet
- Space utilization: up to 80% pallet density
- Picking method: LIFO
Drive-in Racking operates on a last-in, first-out inventory flow. It is a suitable option for warehouses with fewer SKUs but high storage volume, such as cold storage facilities, seasonal goods warehouses, raw material storage areas, and batch production inventory.

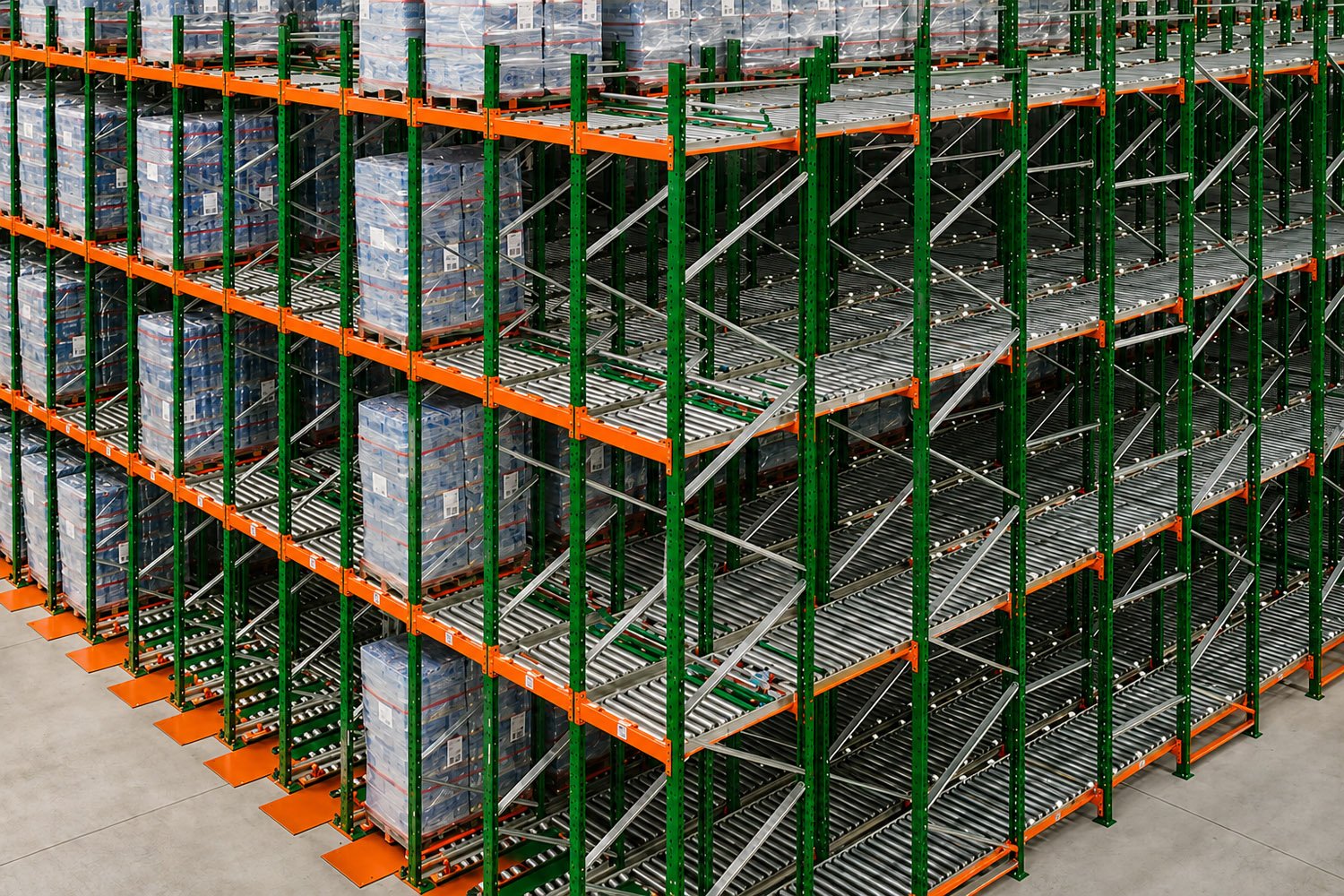

Pallet Flow Racking
Pallet Flow Racking uses inclined roller lanes to move pallets from the loading side to the picking side by gravity. This system increases handling speed and reduces forklift travel distance.
Rack specifications:
- Maximum load: 2,200 lbs per pallet
- Pallet flow speed: up to 9.8 ft/s
- Maximum height: 32.8 ft
- Warehouse fill rate: 80-100%
- Picking method: FIFO
This system supports first-in, first-out inventory flow. It is especially suitable for products with expiration dates or strict inventory rotation requirements.

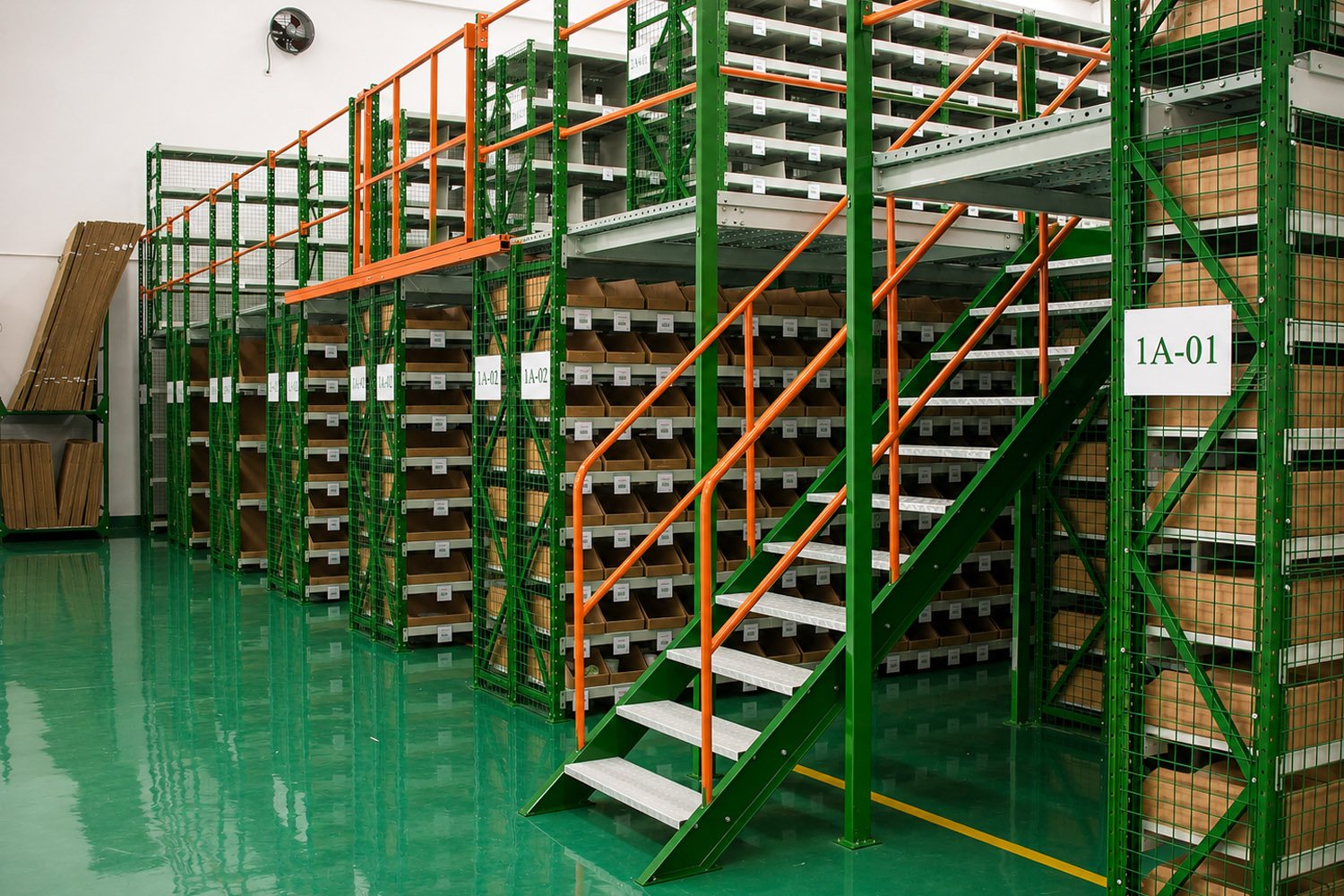

Warehouse Racking Mezzanine
Warehouse Racking Mezzanine uses the rack structure to support an elevated platform. This design creates additional usable space above the existing warehouse area without expanding the building footprint.
Rack specifications:
- Maximum load: 102 lbs/ft²
- Maximum column spacing: 26.2 ft
- Maximum height: 26.2 ft
- Space increase: up to 400%
- Picking method: FIFO/LIFO
This system is suitable for product storage, picking areas, workstations, spare parts zones, packing areas, or light assembly operations.

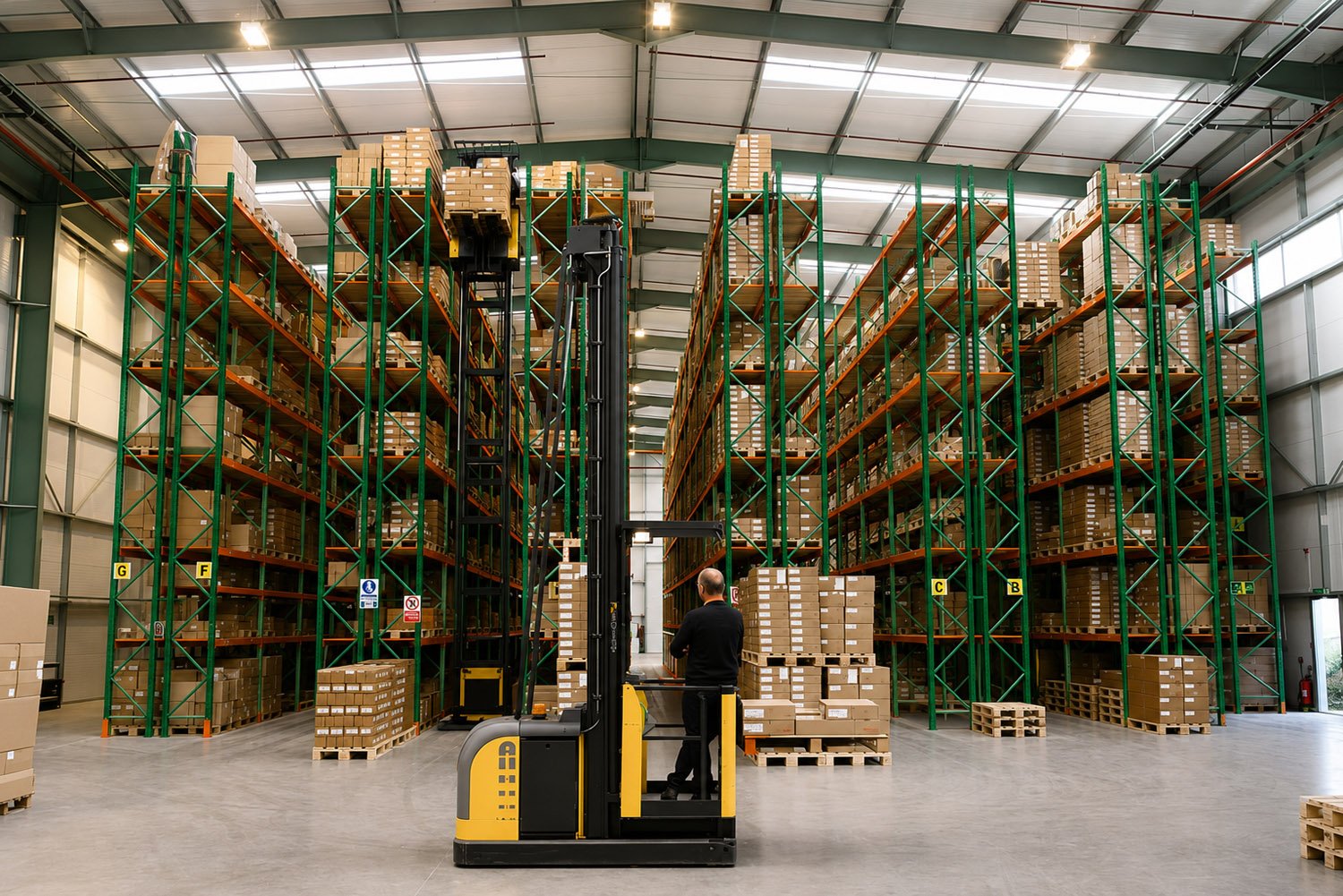

Very Narrow Aisle Racking (VNA)
Very Narrow Aisle Racking, or VNA Racking, is designed to reduce aisle width and increase warehouse storage capacity. It maintains better pallet accessibility than many high-density storage systems while still improving storage density.
This system typically operates with turret trucks or specialized guided forklifts. It is suitable for warehouses with high ceilings, a large number of SKUs, and limited floor space.

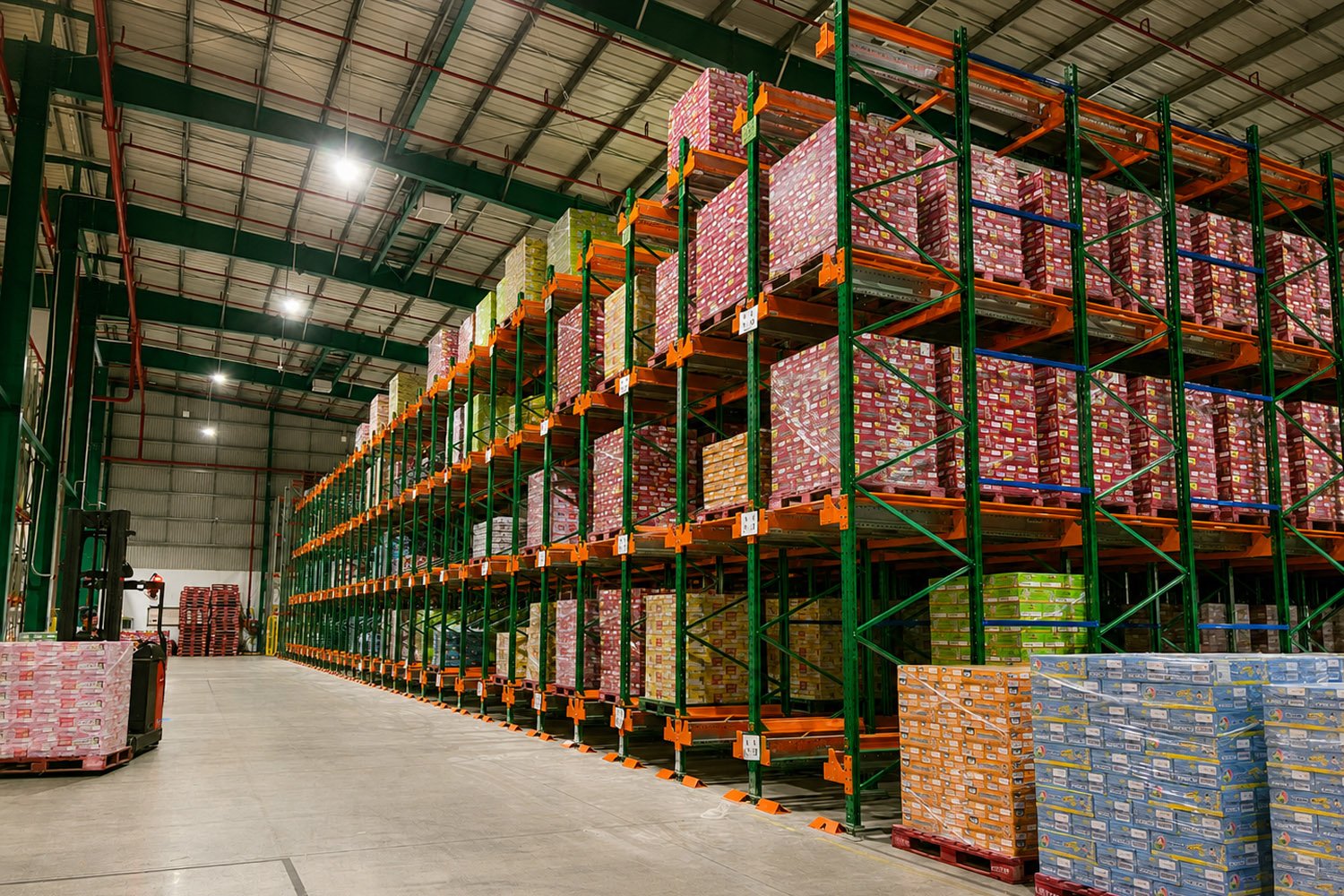

Benefits of Pallet Racking
Pallet Racking provides clear operational benefits when it is designed around actual warehouse conditions, including:
- Increased vertical storage capacity: Businesses can store more pallets within the same warehouse footprint.
- Improved inventory organization: Products can be arranged by SKU, batch, turnover rate, load weight, or picking priority.
- Faster material handling: A well-planned racking layout reduces unnecessary forklift travel and improves receiving, picking, and replenishment efficiency.
- Enhanced workplace safety: A properly engineered system reduces unstable stacking, blocked aisles, and product damage.
- Long-term scalability: Modular rack structures can be expanded, adjusted, or upgraded as inventory volume and operational requirements change.

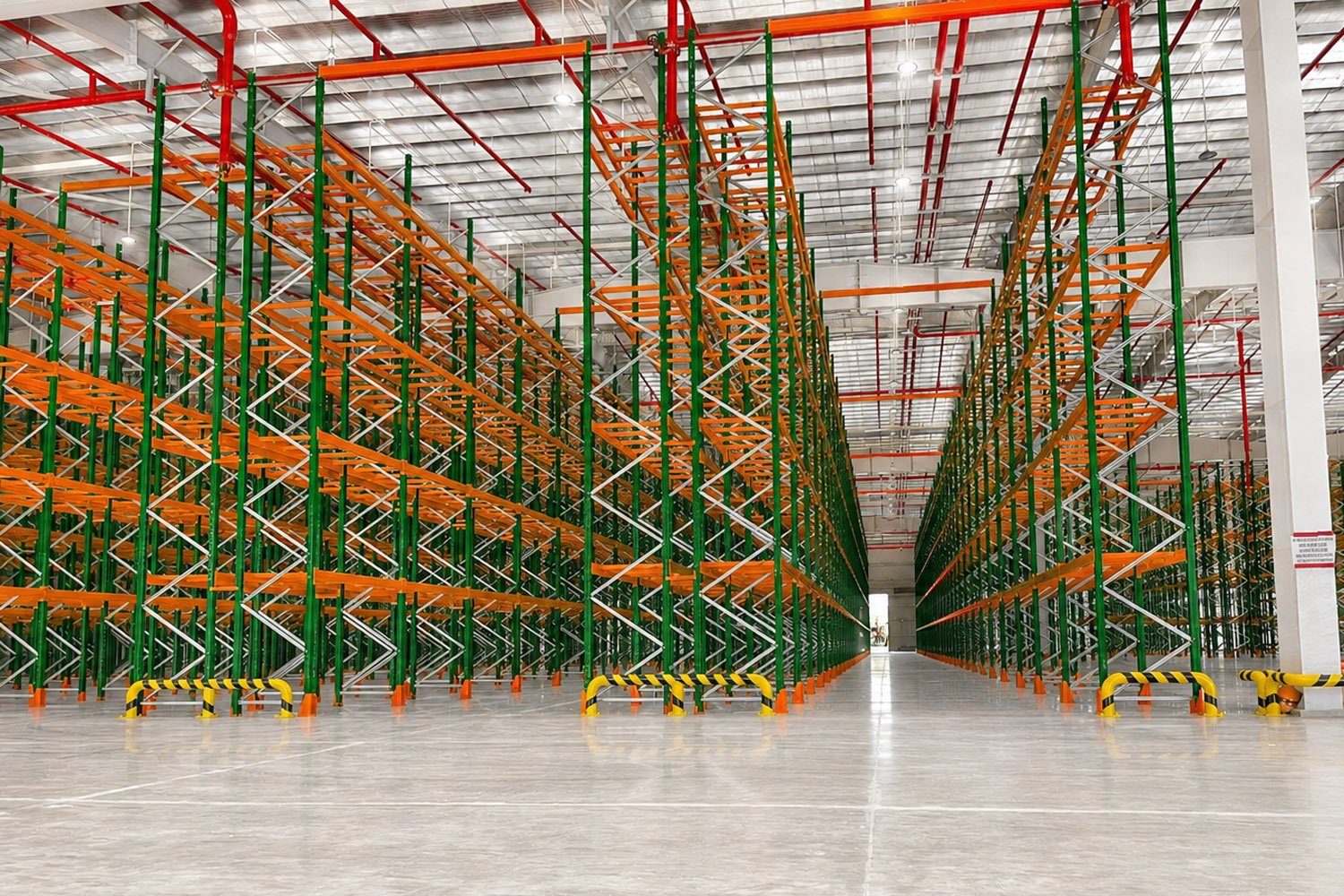

Why a Proper Pallet Racking Matters
A poorly designed Pallet Racking system can create hidden costs. These costs often appear as product damage, longer picking time, blocked aisles, forklift congestion, low space utilization, and safety risks.
A proper Pallet Racking system starts with accurate data. Key factors include pallet dimensions, load weight, warehouse height, floor slab condition, forklift specifications, fire protection requirements, and inventory flow.
Engineering is also critical. Beams, upright frames, floor anchors, bracing, and rated load capacity must match real operating conditions. Overloading racks or using the wrong rack configuration can affect the stability of the entire system.

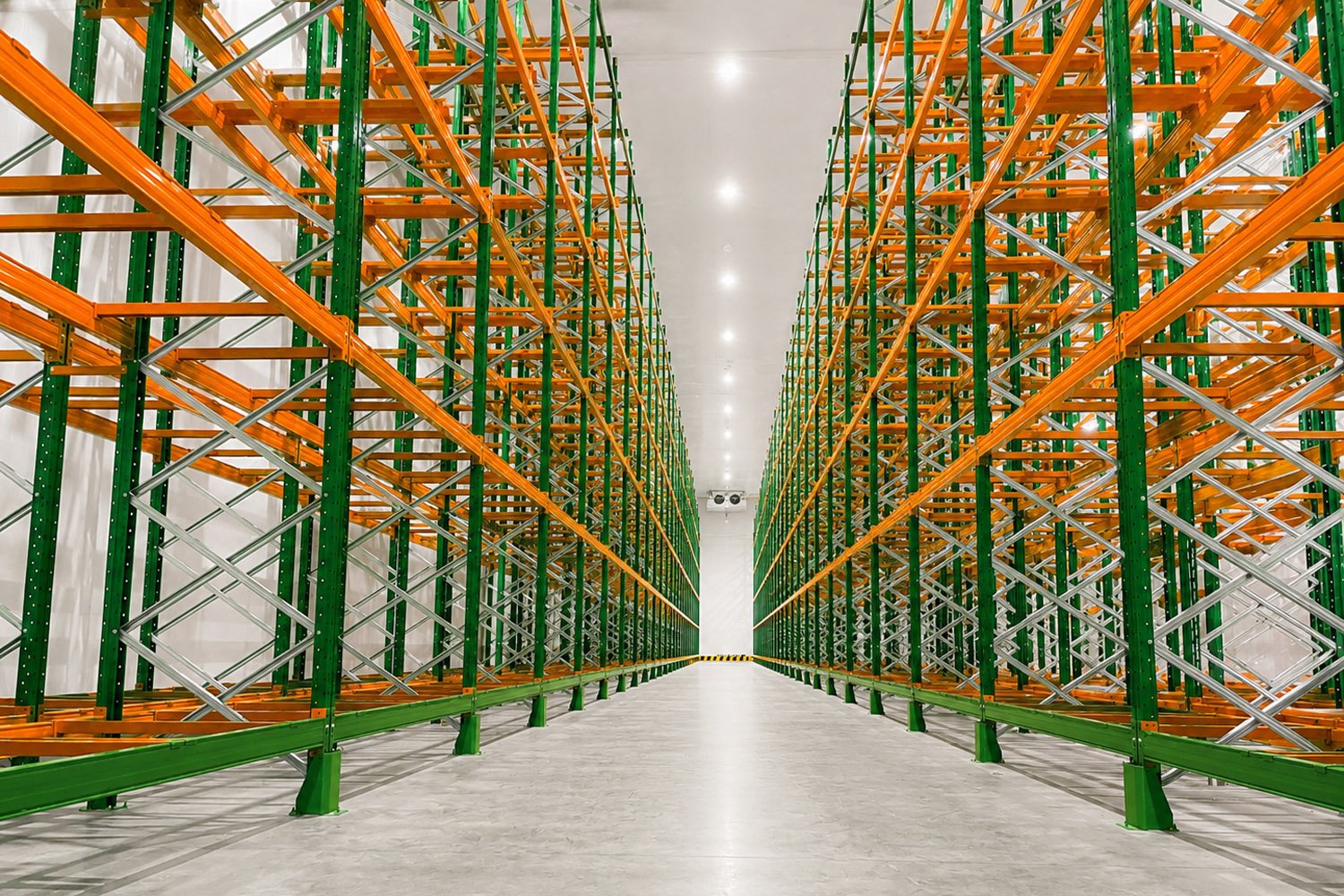

When to Upgrade or Redesign Industrial Warehouse Racking
Businesses should consider upgrading or redesigning their Pallet Racking system when:
- Storage demand exceeds current capacity, picking time increases, inventory becomes difficult to control, or aisles are frequently congested.
- Products are frequently damaged, racks are impacted by forklifts, beams are overloaded, or pallets no longer fit the rack positions properly.
- Vertical warehouse space is underutilized, or forklift equipment has changed.
- Business growth creates new requirements, such as additional SKUs, higher order volume, e-commerce expansion, cold storage development, or warehouse automation.
A warehouse redesign should not focus only on adding more racks. The main goal should be to improve the entire storage flow, from receiving and put-away to picking, packing, staging, and shipping.

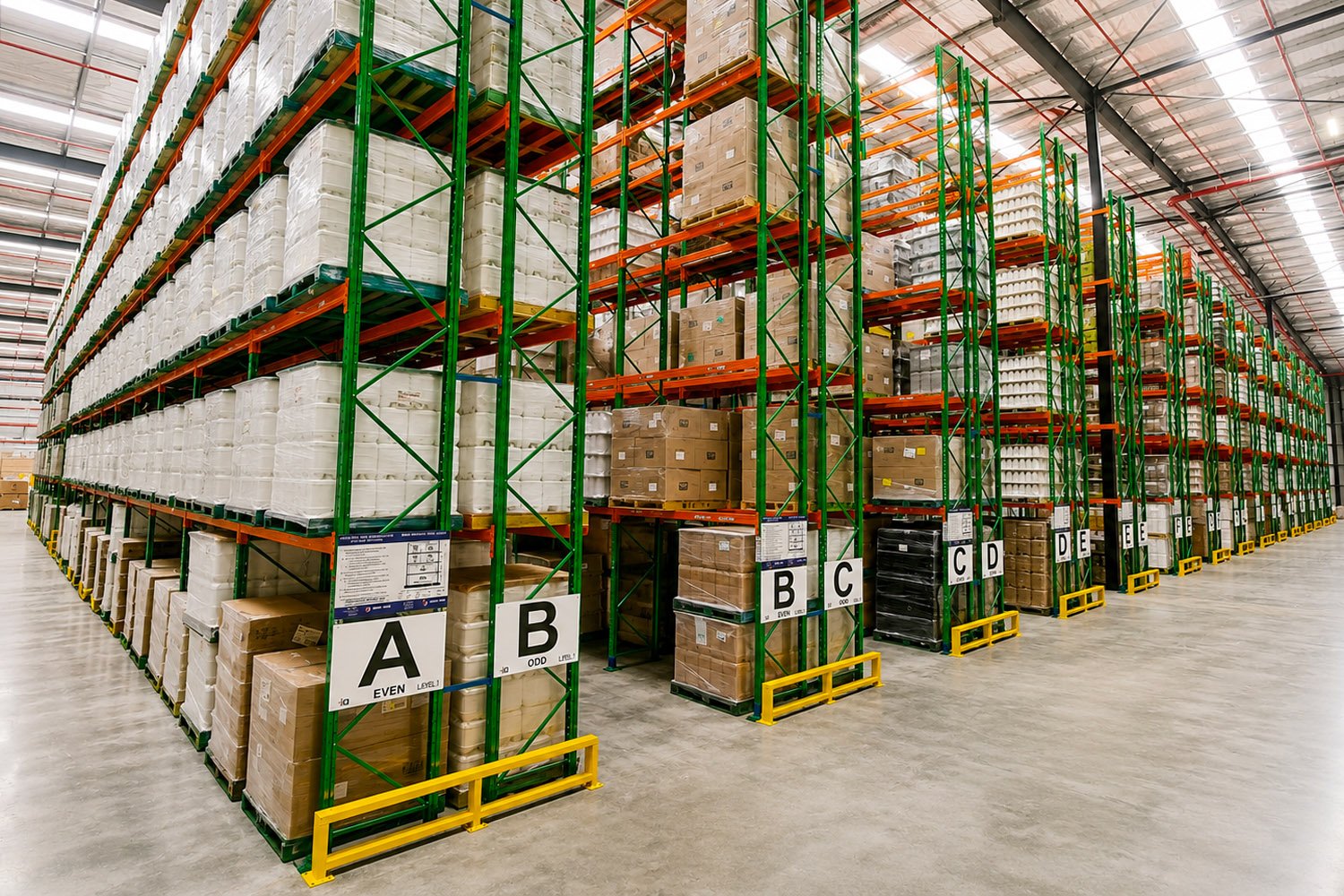

Vinatech America – A reliable pallet racking partner
Vinatech America provides industrial warehouse racking solutions for businesses that need safer, denser, and more efficient storage systems. The company supports projects from consultation and warehouse layout design to manufacturing coordination, installation, and after-sales service.
With practical engineering experience and a strong manufacturing background, Vinatech America helps businesses choose the right Pallet Racking system for their space, inventory, and growth plan.
For businesses looking to increase warehouse capacity, reduce material handling waste, and build scalable storage infrastructure, Vinatech America is a reliable partner for Pallet Racking and industrial warehouse racking systems.
