Introduction to Mobile Racking Systems

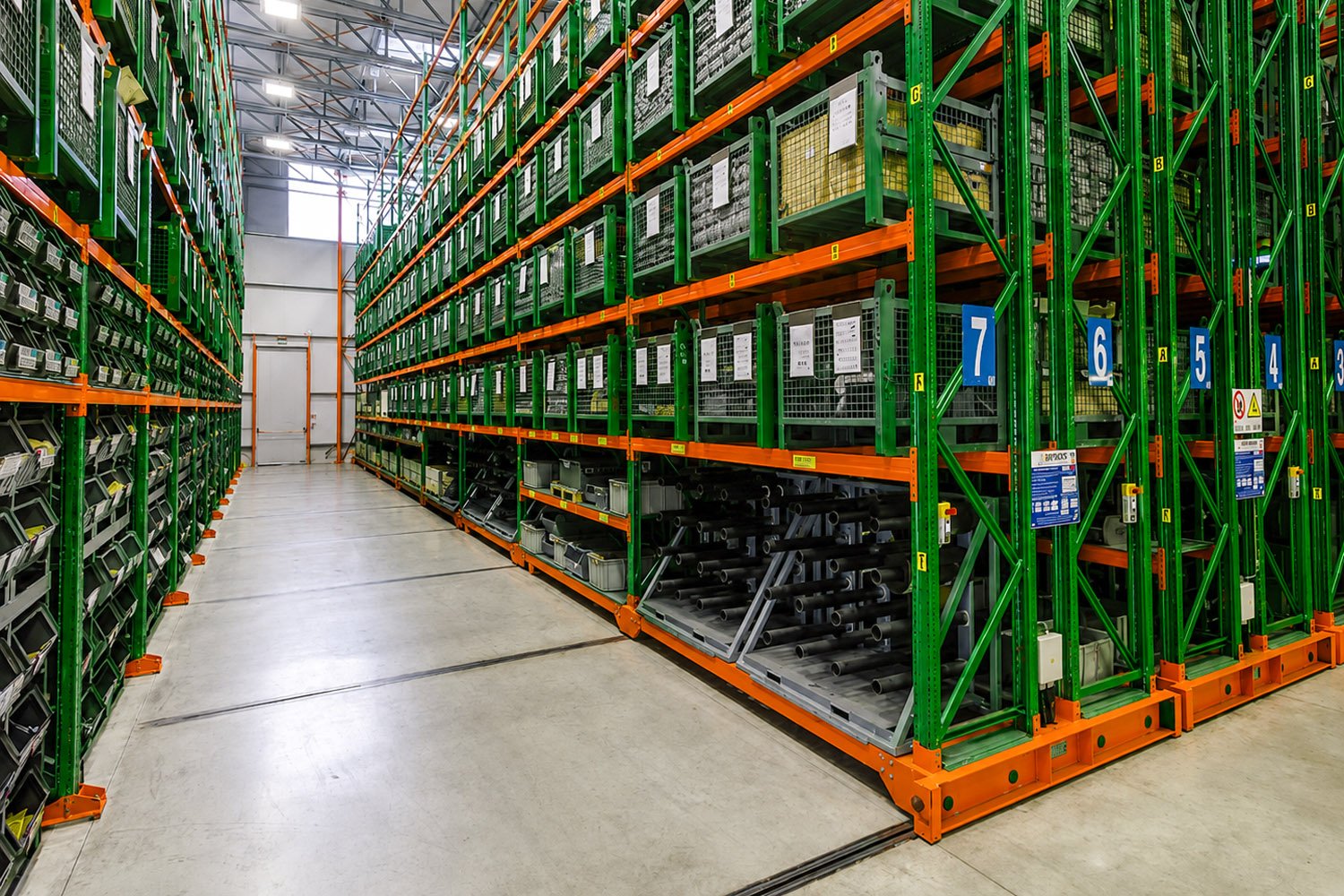

Mobile pallet racking is a high-density storage solution designed to maximize warehouse space by eliminating fixed aisles. Instead of static racking rows, the entire mobile racking system is mounted on motorized mobile bases that travel along embedded floor rails, allowing aisles to open only when loading or unloading is required.
This design makes mobile racking particularly suitable for warehouses where storage density is prioritized over high picking speed. By compacting racking rows, facilities can significantly increase storage capacity within the same footprint while still maintaining direct access to every pallet or unit load.

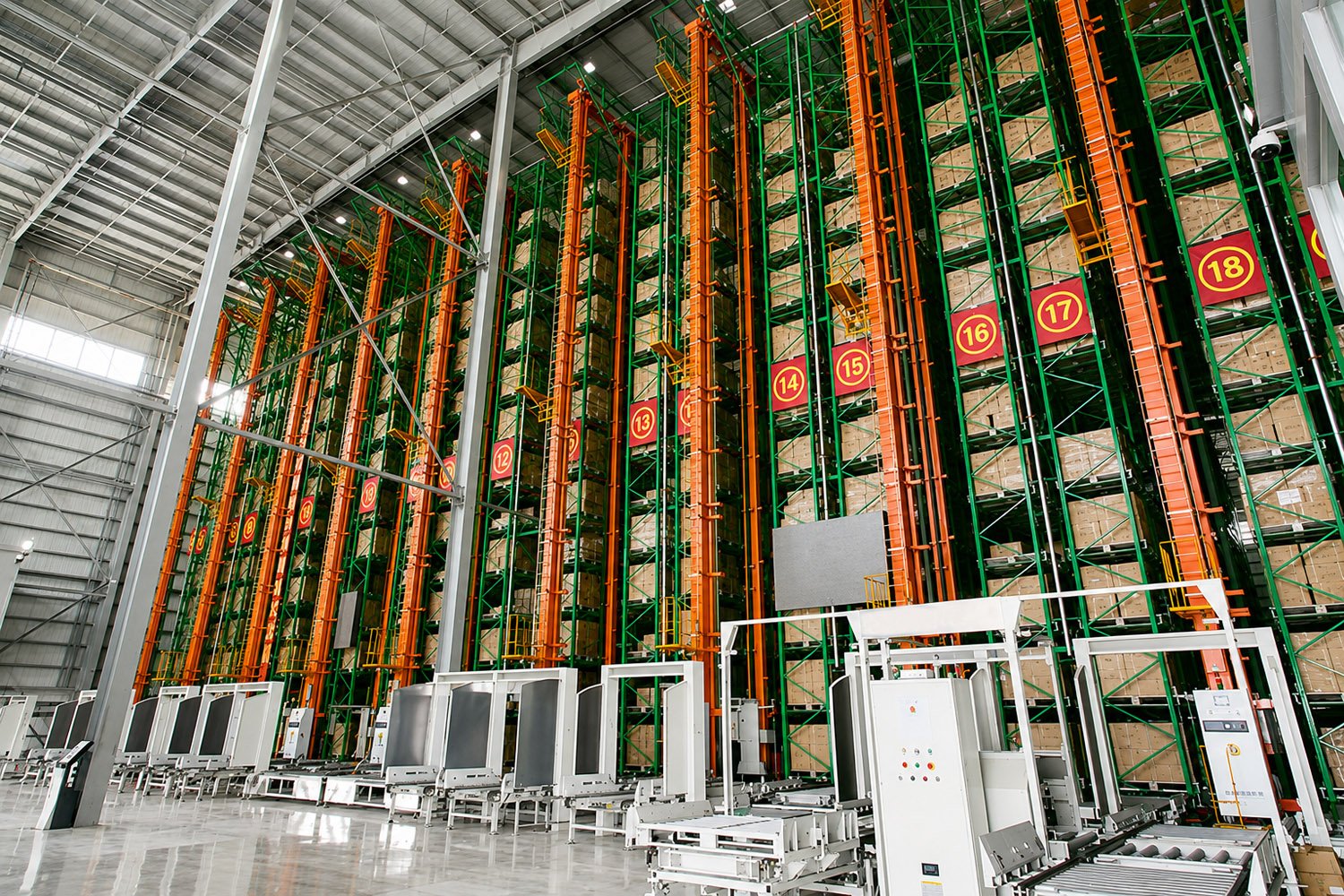

Read more: ASRS System – Automated Storage and Retrieval Solutions

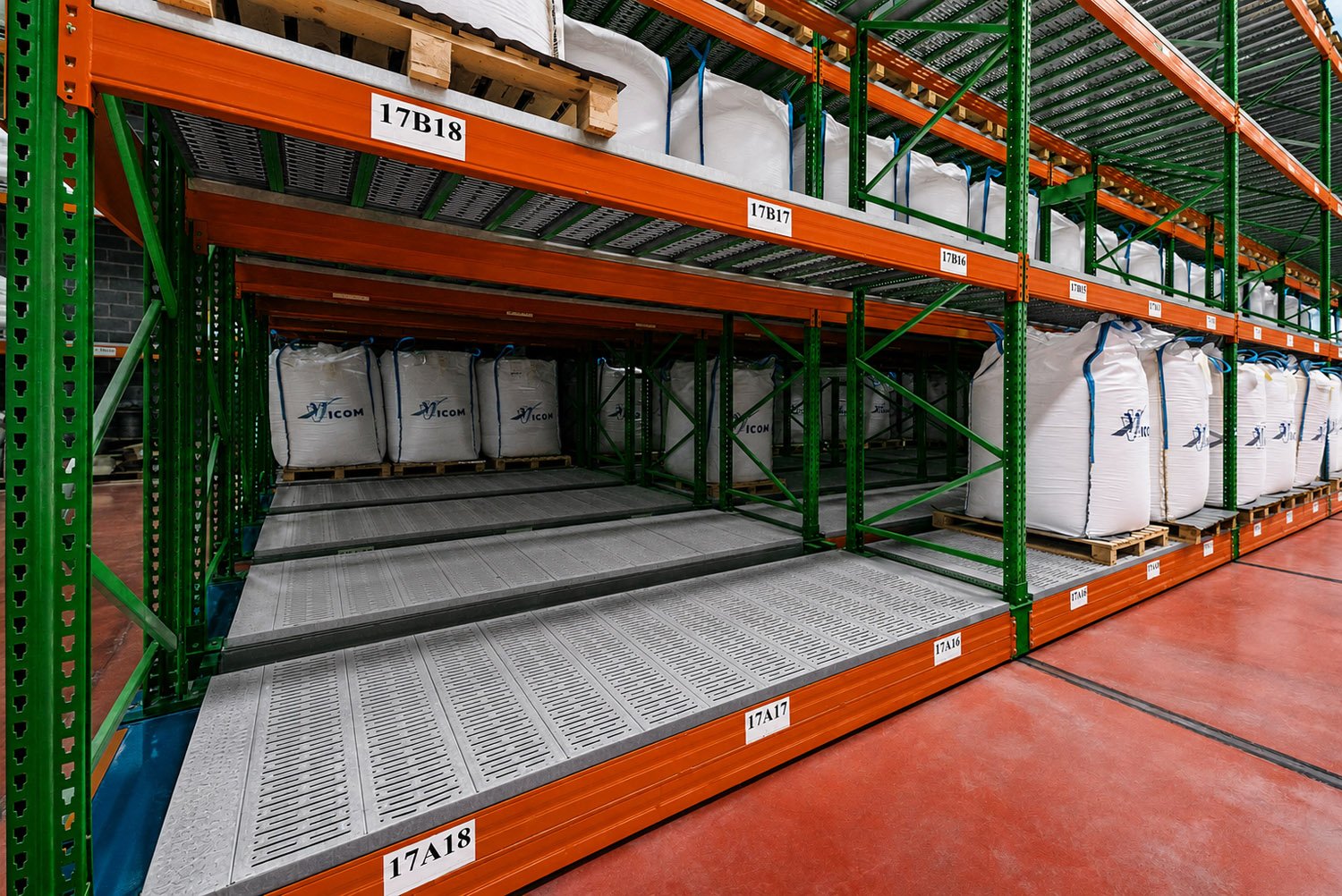

Components and accessories Mobile Racking System
A mobile racking system is an integrated high-density storage solution engineered for durability, operational safety, and long service life.
- Carriages: Heavy-duty steel bases that support racking loads and move along floor rails.
- Drive System & Motors: Industrial electric motors provide smooth and reliable rack movement.
- Double-Crown Gears: Improve power transmission while reducing vibration and wear.
- Variable-Frequency Drives (VFDs): Enable soft start and stop operation for enhanced safety and durability.
- Drive Shafts: Ensure synchronized and stable movement across the entire mobile base.
- Floor Rails & Guidance System: Embedded rails maintain precise alignment and smooth travel.
- Structural Bracing: Reinforced bracing increases stability and load-bearing performance.
- Control Panels: Allow easy operation through push-button controls, remote devices, or WMS integration.
How does Mobile Pallet Racking Work?

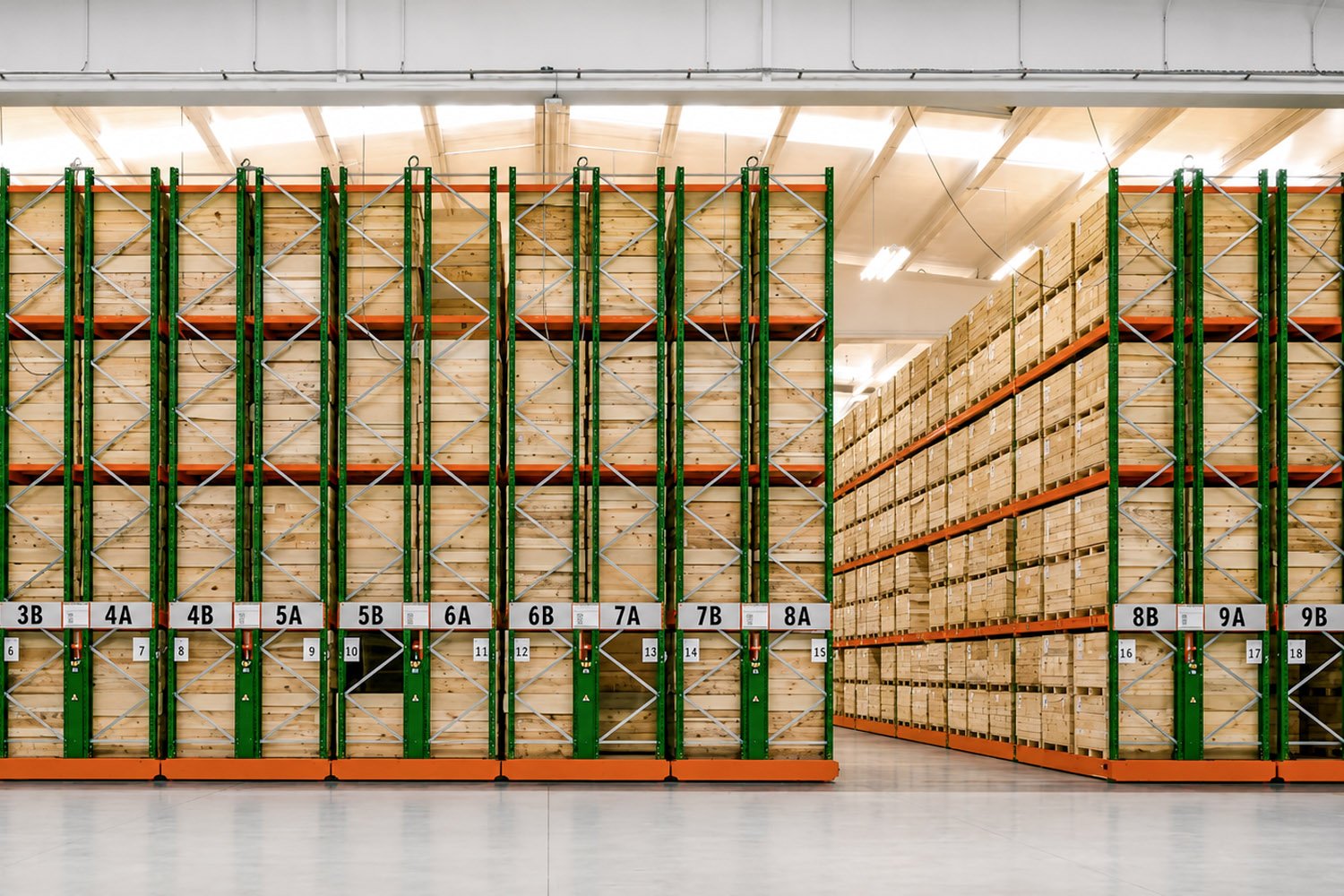

A mobile pallet racking system operates by compacting racking rows to optimize available warehouse space and dramatically increase storage capacity. All pallet racking rows are installed on electrically powered mobile bases that move laterally along floor-embedded rails. By eliminating the fixed aisles found in conventional pallet racking, the system maintains only a single working aisle, resulting in very high storage density.
Overall operating principle:
- Racking rows are mounted on mobile bases and can move independently sideways.
- Aisles are opened only when loading or unloading operations are required.
- All movements are driven by electric motors and controlled via a central control system or remote control.
When access to a specific rack location is needed, the system automatically opens the required aisle by shifting adjacent racking blocks. The operator sends the command via a remote control or main control panel, and the mobile racking system performs the movement smoothly, accurately, and safely.

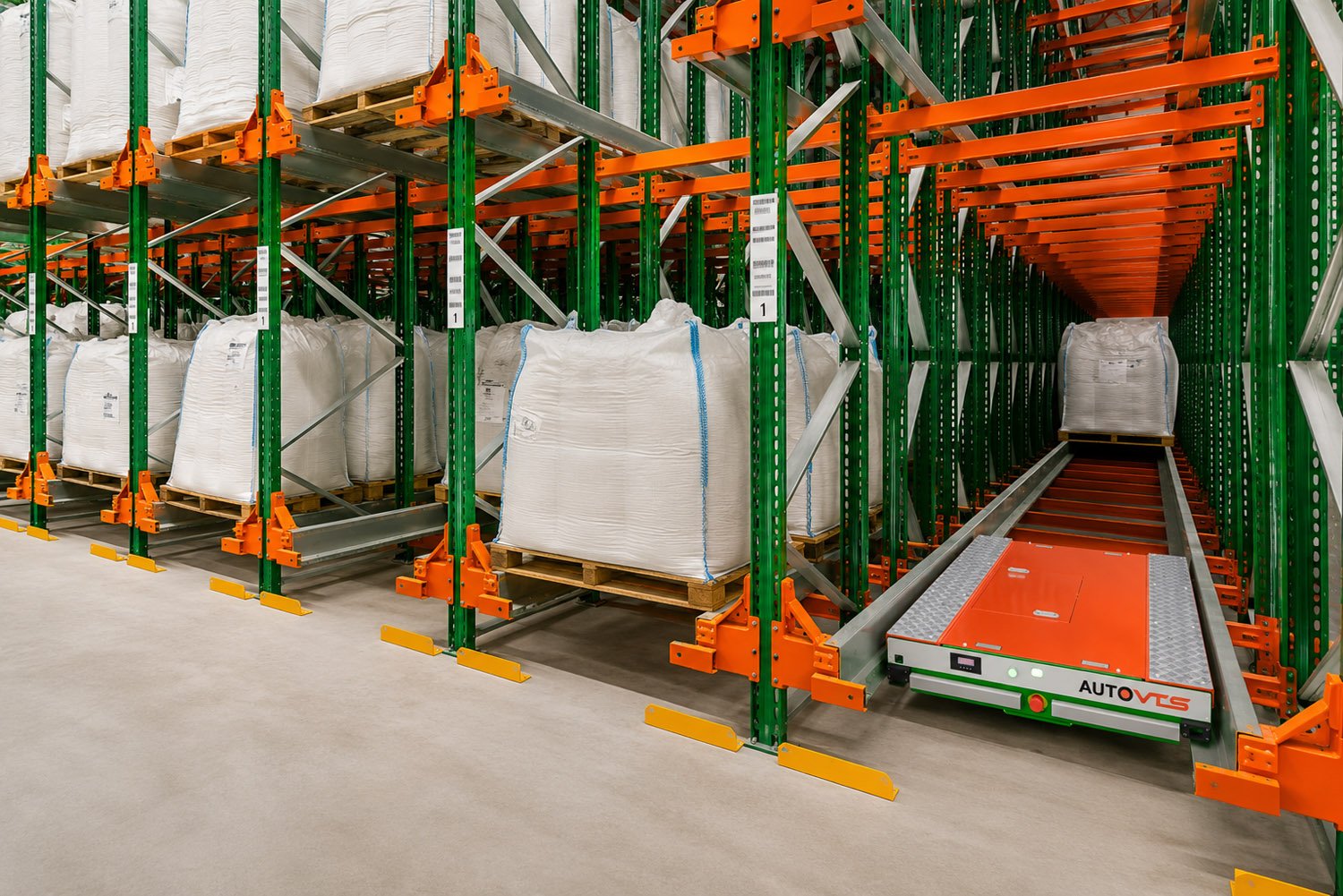

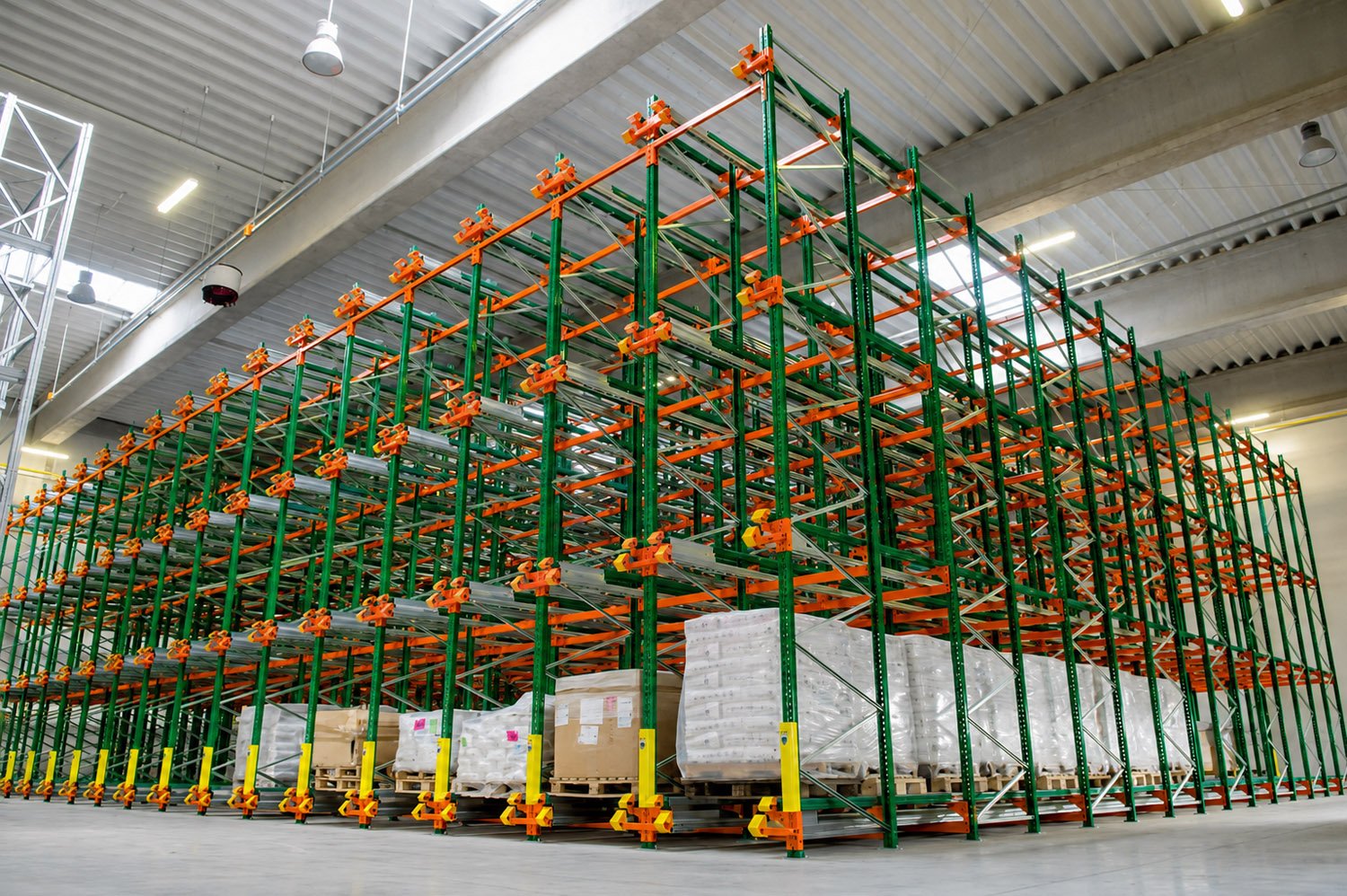

Read more: Pallet Shuttle Racking System

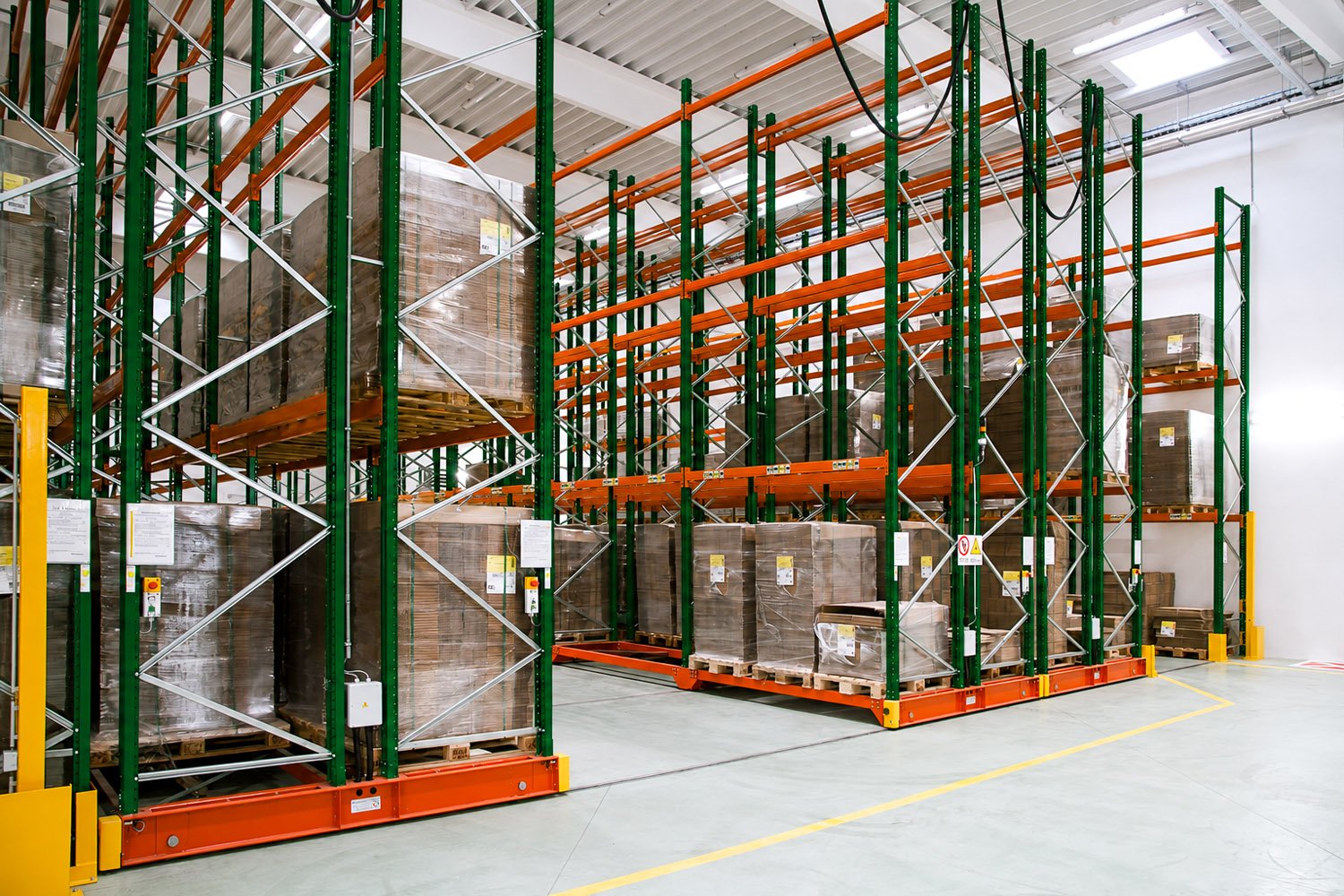

Mobile Racking System advantages
As warehouse floor space and energy costs continue to rise, mobile pallet racking is increasingly recognized as an optimal storage solution that maximizes space utilization while ensuring operational efficiency and safety.
Significantly Increased Storage Capacity
By eliminating fixed aisles that typically occupy a large portion of conventional warehouses, the entire floor area can be dedicated to storage. This allows businesses to fully utilize their available space and improve overall warehouse efficiency.
Thanks to this operating principle, mobile racking systems can increase storage capacity by 80% to 120% compared to traditional pallet racking within the same warehouse footprint. This enables companies to expand storage capacity without investing in additional floor space, especially valuable where land and construction costs are high or physical expansion is not feasible.
High Flexibility and Versatility
Beyond standard pallets, mobile racking can be customized to store a wide range of load types, including coils, pipes, profiles, and other non-palletized or specialized goods. This versatility allows the system to adapt easily to different industries and warehouse layouts.
As a long-term flexible solution, mobile pallet racking can also scale with warehouse growth. Additional mobile racking units can be added as storage needs increase, without requiring major structural changes to the existing facility.

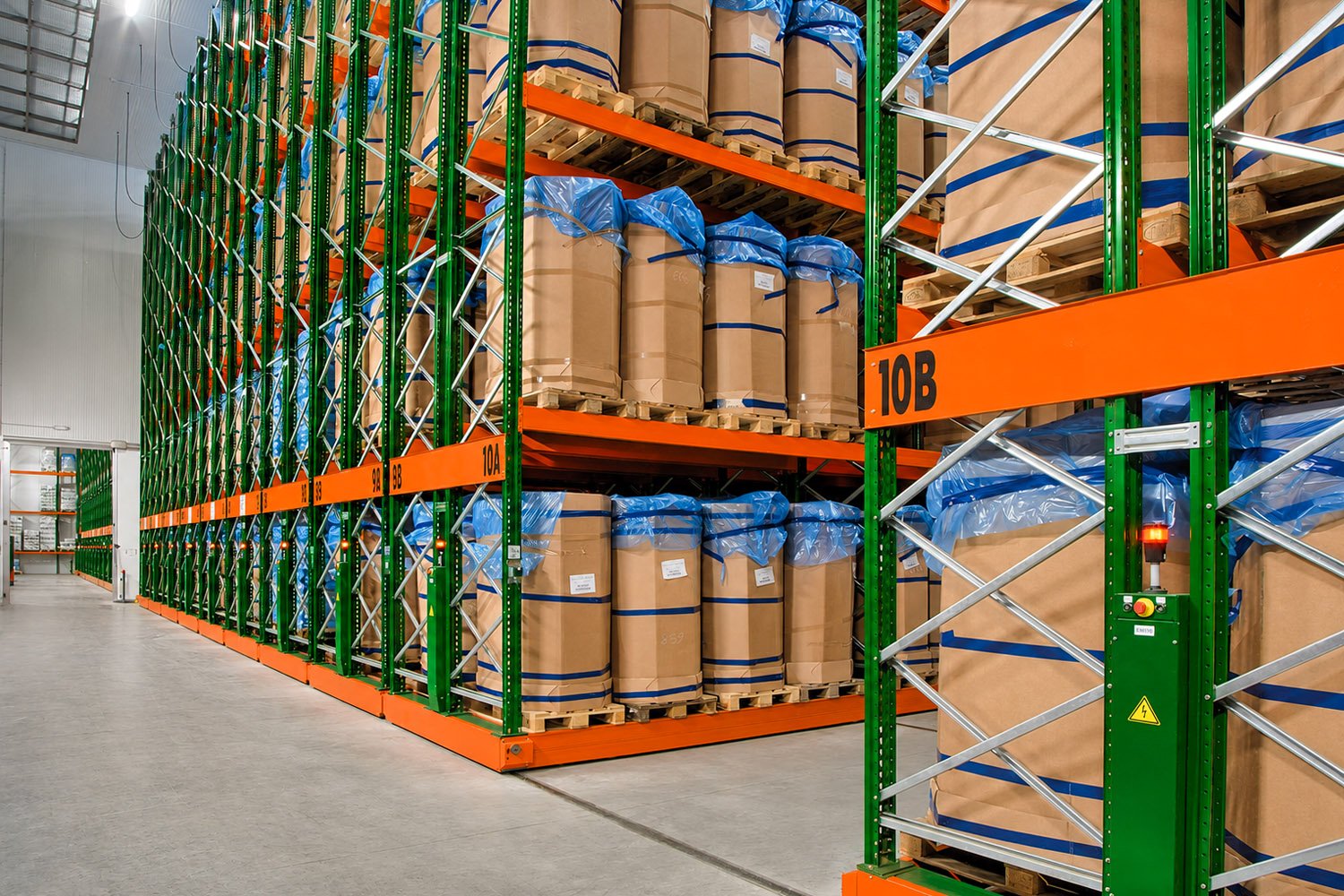

High Safety and Long-Term Durability
The system features a robust structural design and is equipped with multiple safety devices, including sensors, anti-collision systems, emergency stop buttons, and warning signals. These features ensure that both operators and stored goods are protected throughout daily operations and over the system’s long service life.
Mobile Pallet Racking applications
Thanks to its high storage density, direct access to goods, and optimized operating costs, Mobile Pallet Racking is widely used across various warehouse environments—particularly where space, energy efficiency, and inventory control are critical.
- Cold & Frozen Storage: Reducing the number of fixed aisles minimizes the volume of air that needs to be cooled, leading to substantial energy savings.
- Food & Beverage Warehouses: Direct access to every pallet makes the system ideal for strict expiration date control and traceability requirements.
- Pharmaceutical & Chemical Warehouses: Enables precise batch management while reducing the area that must be temperature-controlled or maintained under special environmental conditions.
- Industrial & Raw Material Warehouses: The heavy-duty structure and stable operation meet the demands of industrial and high-load storage applications.
- Logistics & Distribution Centers: Optimizes available space while maintaining direct pallet access, supporting efficient inventory management.
Mobile Pallet Racking Systems offer an effective way to maximise warehouse storage capacity while maintaining 100% pallet accessibility. By eliminating unnecessary aisles and using mobile bases that open only when required, these systems can significantly increase storage density without expanding warehouse space. With customised design, professional installation, Vinatech Australia helps businesses implement mobile racking systems that support long-term warehouse performance and growth
